Krones Hydrofill
Special filler for water
Perfect for water with an ozone content from 0.5 ppm
Krones developed the Hydrofill especially for filling non-carbonated water. The filler is designed to fit perfectly into Krones block solutions such as the Contiform Bloc BF-C or the ErgoBloc LM.
At a glance
- Especially developed for filling non-carbonated water
- Every water type can be filled with or without conductivity: Perfect for water with an ozone content from ≥ 0.5 ppm
- Filling valve with mass flow meter and proportional flow regulator (PFR) for optimum flow speeds
- Fits ideally into Krones block solutions such as the Contiform Bloc BF-C or ErgoBloc LM, including the appropriate capper

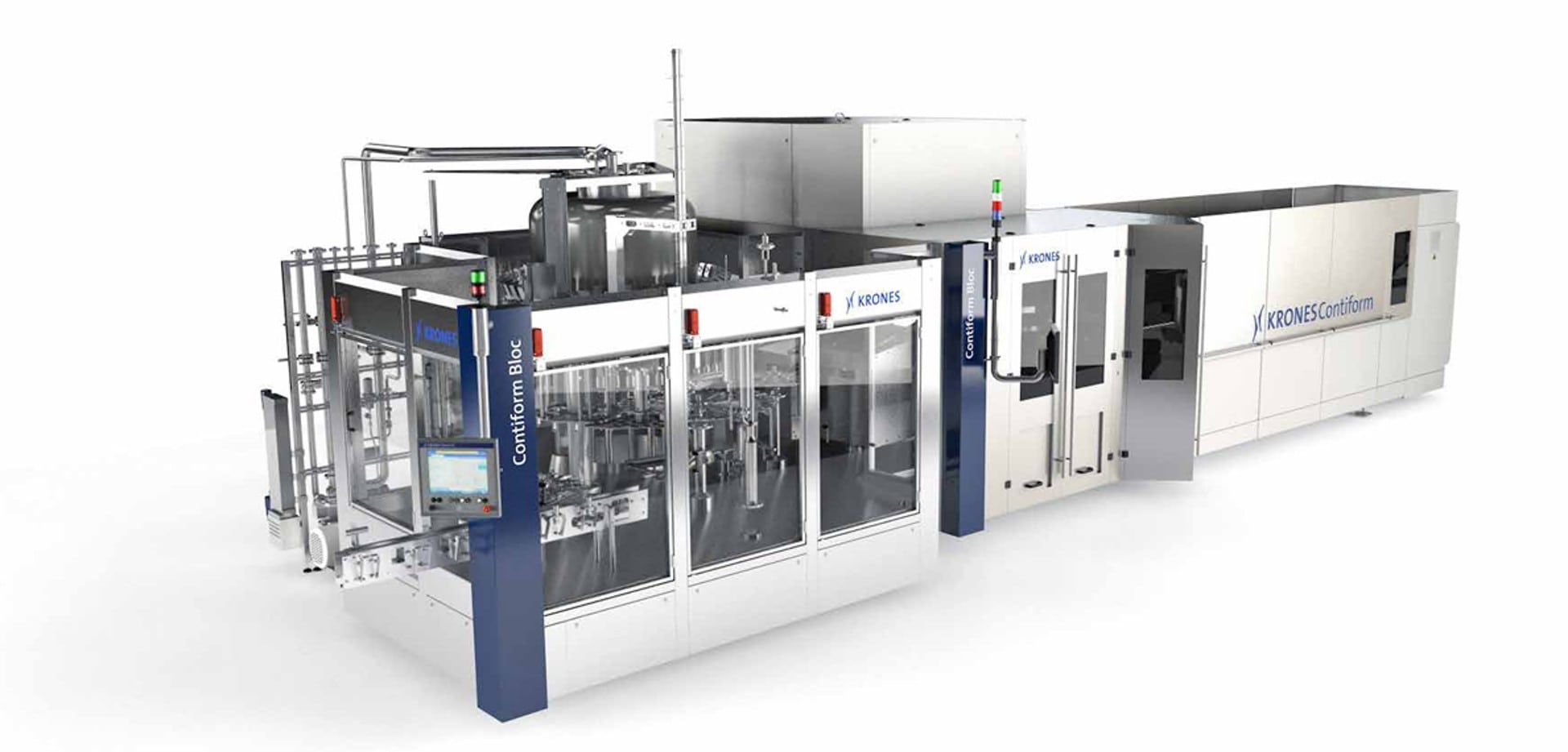

Krones Hydrofill as part of the Contiform Bloc BF-C
- Filling valve
- With mass flow meter for water without conductivity
- Design with PFR technology for infinite adjustment of the filling speed
- Pressureless product tank with sterile-air supply
- Interior cleaning of the system
- With trough
- Including CIP return pump
- Capper with central, servo-controlled head drive
- System for cap feed:
- Krones sorting system with cap inspection unit
- Krones Accucap technology for cap buffering
- Contiform 3 Pro stretch blow moulder
Components

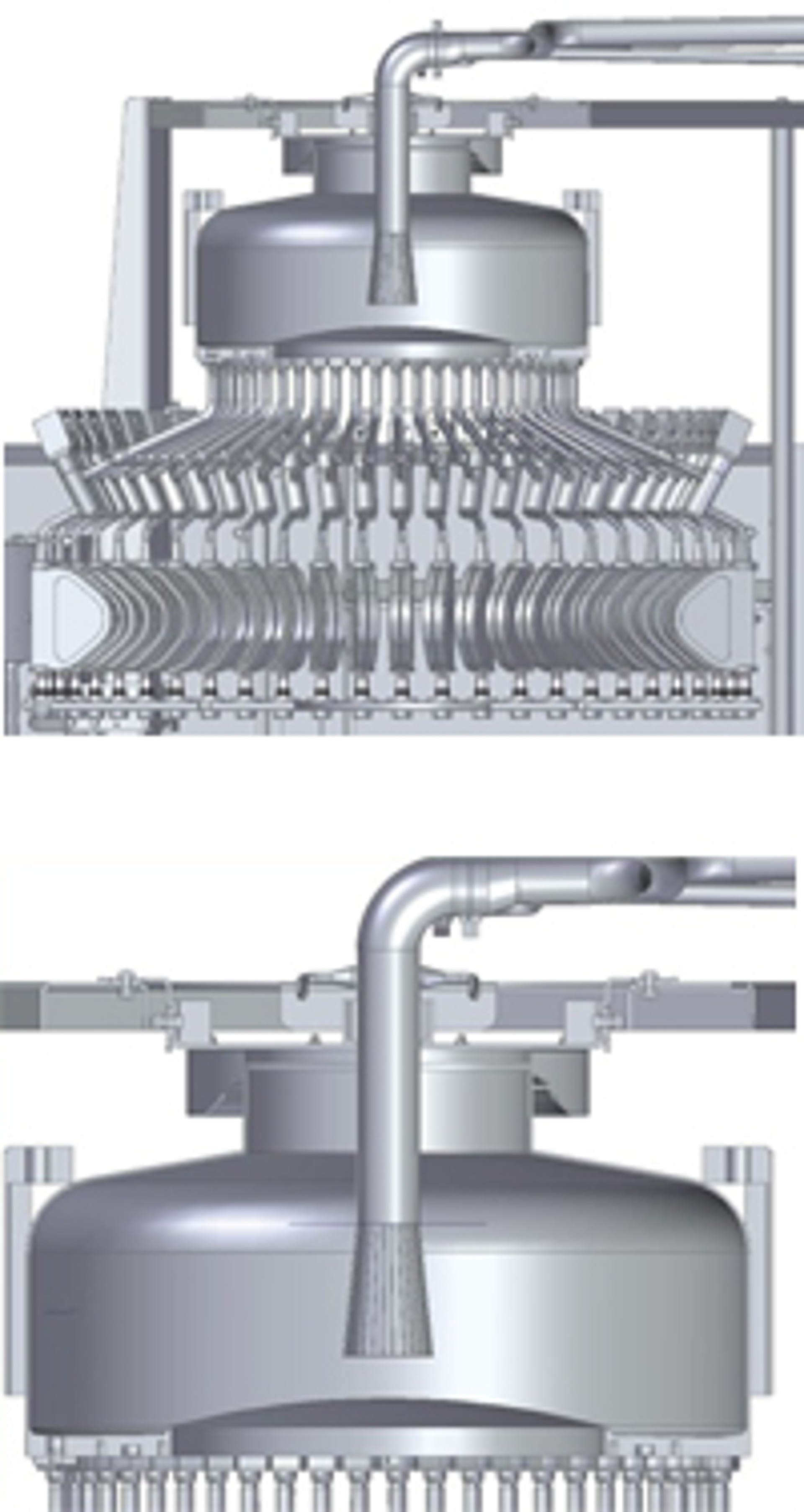

Product tank design
- Pressureless product tank with sterile-air supply
- Product feed from top
- Integration of a special safety function in the control system to transmit a warning signal in the event of a malfunction in the sterile-air supply

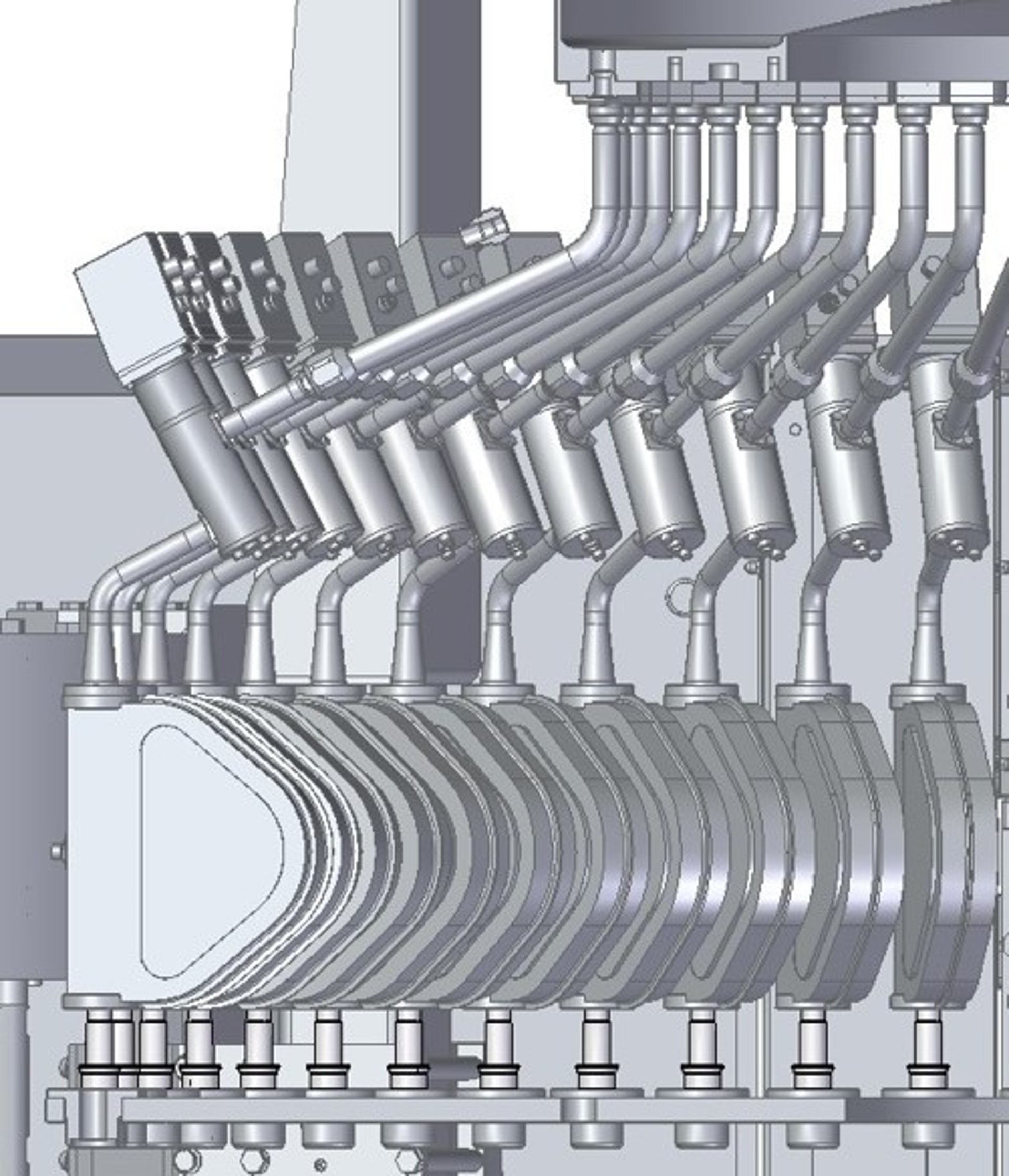

Filling valve design
- Filling valve especially designed for filling non-carbonated water
- equipped with a state-of-the-art mass flow meter
- best possible values for the standard deviation
- Filling process in full-jet mode for optimum microbiological safety
- Infinite adjustment of the filling speed by the Krones Proportional Flow Regulator (PFR)
- Latest technology for flow control during filling
- Only available at Krones

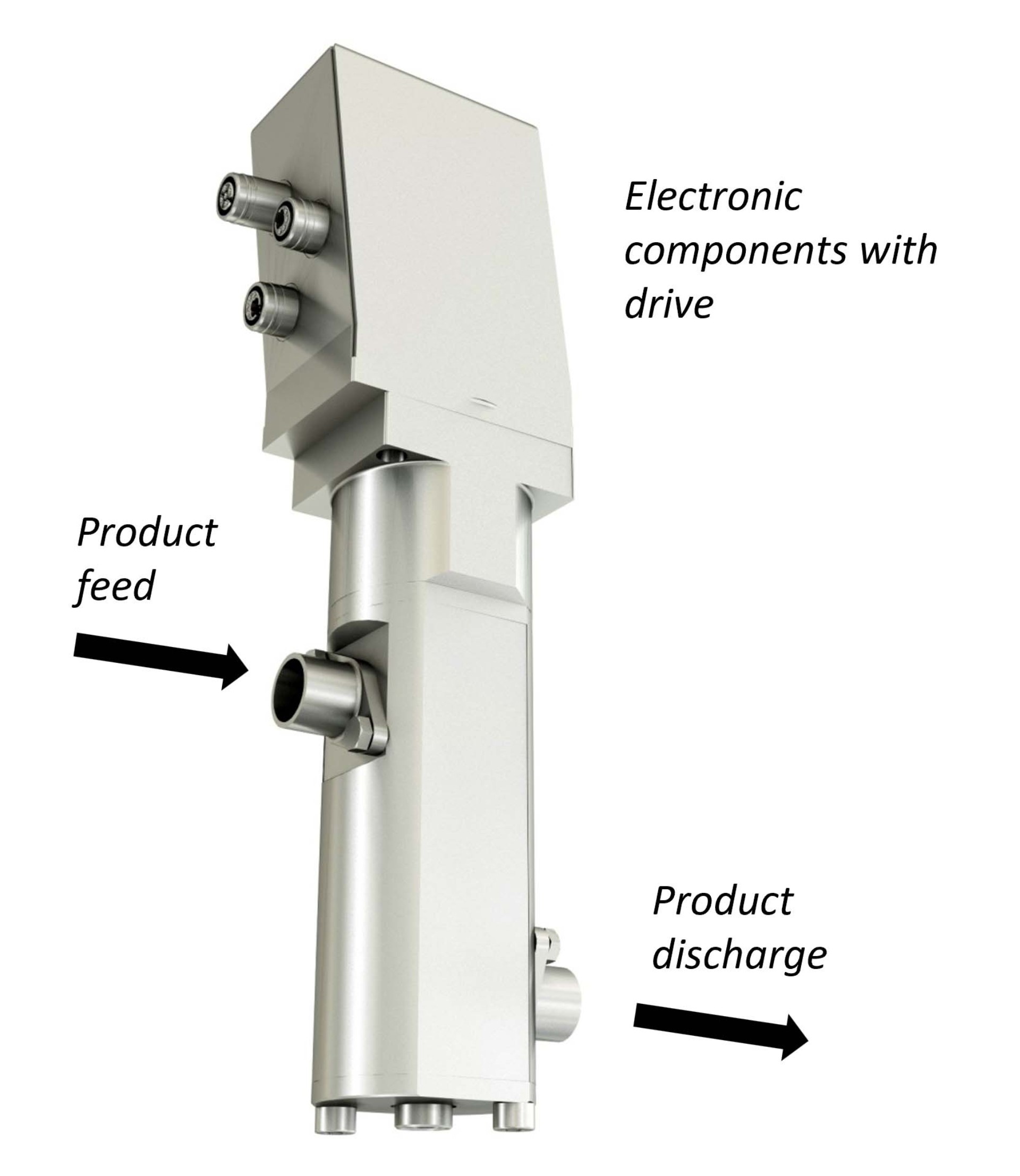

The PFR valve: Benefits to you
Optimum adjustment to all product-bottle combination
- Infinitely adjustable flow speed
- Utmost reproducibility due to the identical design of all filling valves
- Applicable for nearly all filling systems
Quickly ready for use
- Plug-and-play principle thanks to the simple, modular replacement of components without need for calibration
- Optimum machine start-up with valve function control and filling program change during start-up
Maximum operational reliability
- Direct monitoring of the valve position, ideal utilisation of the filling angle
- Early failure detection thanks to control current monitoring
Minimised maintenance effort
- Pre-connected lines, minimum wiring requirement
- Simplified troubleshooting as the mechanical and electronic components form a single unit

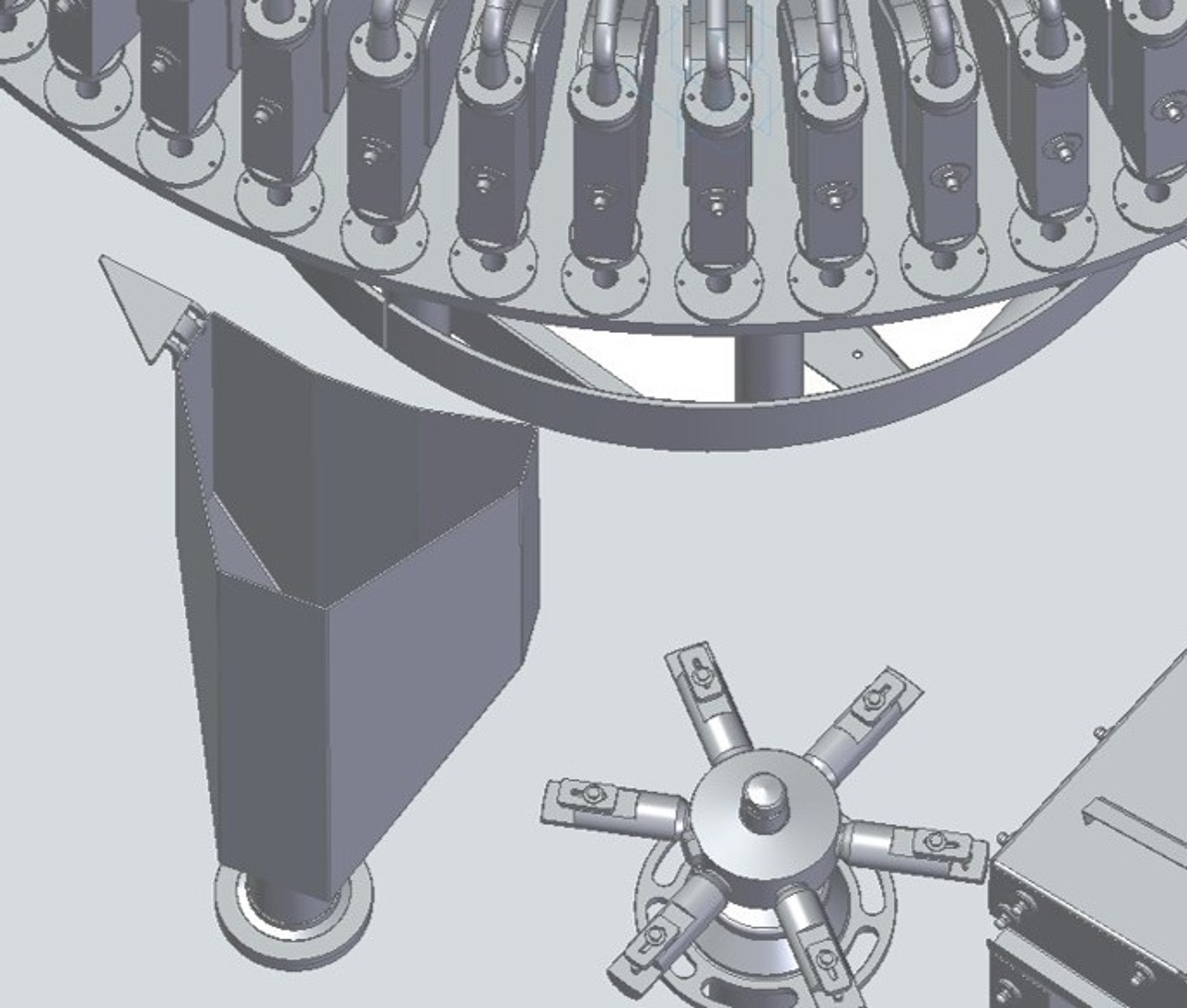

CIP cleaning
- Hygienic design of CIP program
- Draining of CIP medium via the open filling valves between the infeed and discharge starwheel into a trough
- CIP trough with a recirculation pump for returning CIP media into the CIP circuit

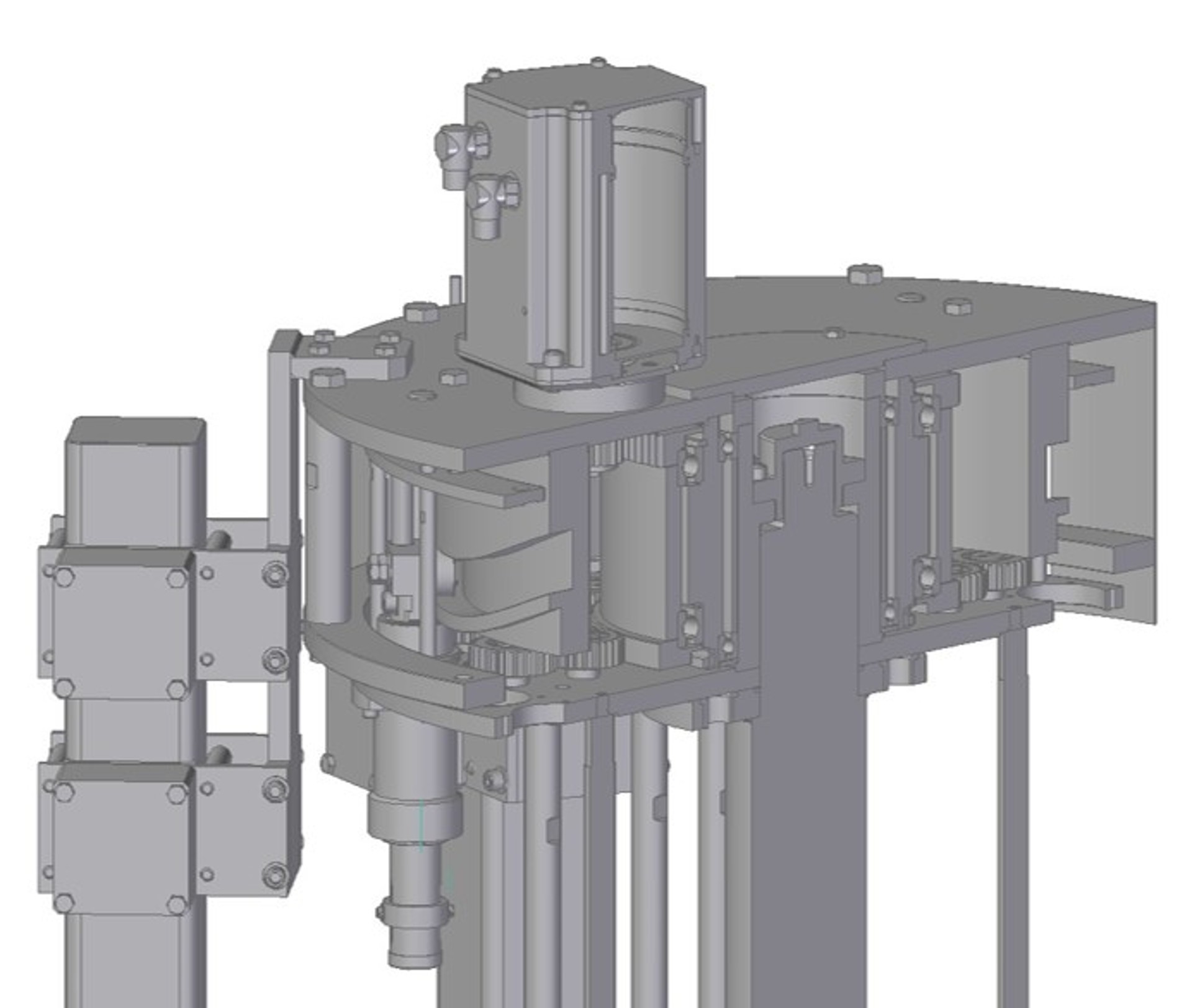

Capper
- Matched to the Krones Hydrofill water filler
- With servo drive technology
- The rotary motion is transferred via gears to the individual capping heads
- Cam and roller controlled vertical movement of the capping heads

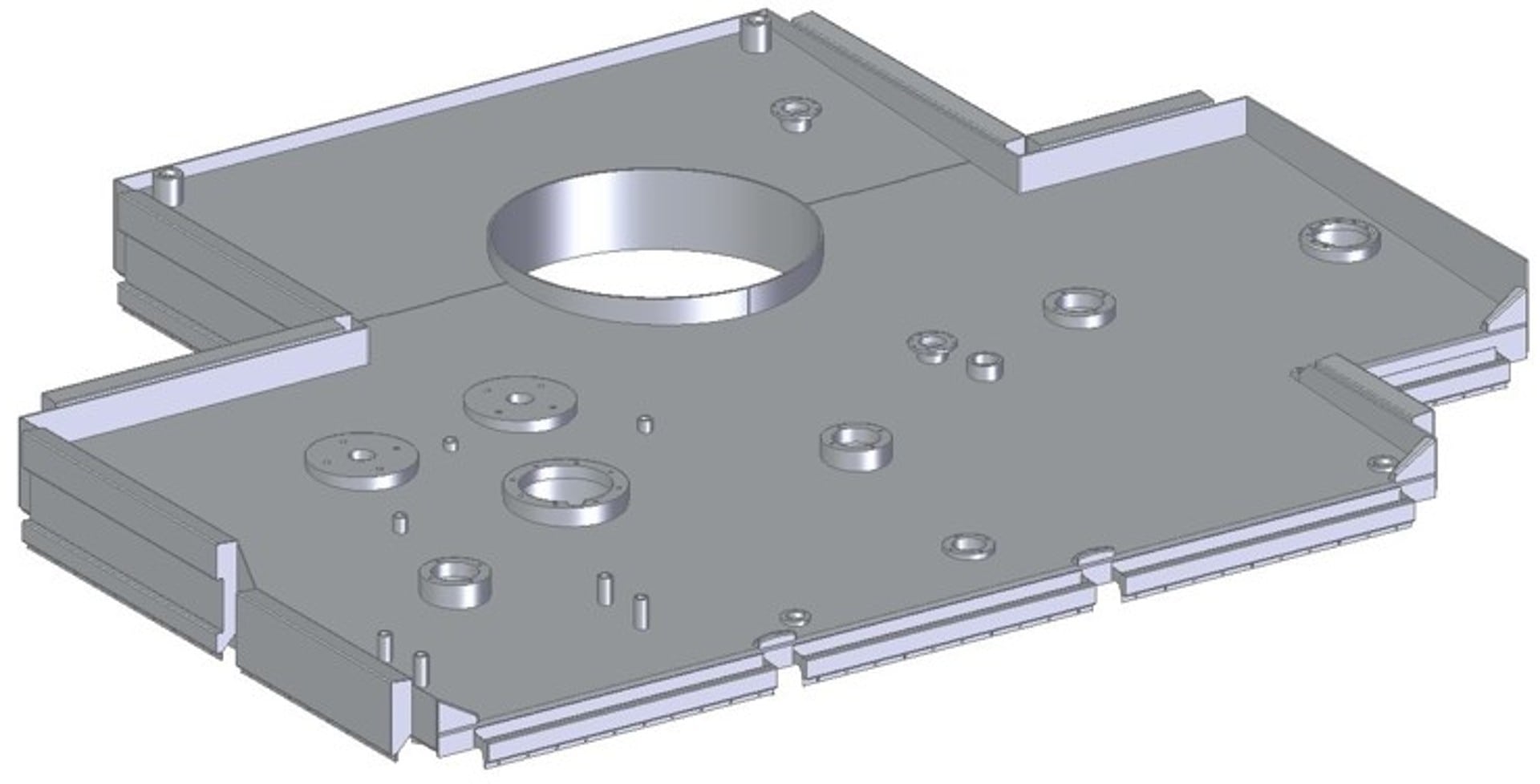

Machine table and guards
- Table top with slope on one side central draining point
- Very compact machine layout due to directly attached guards
- The complete system is provided with servo drives

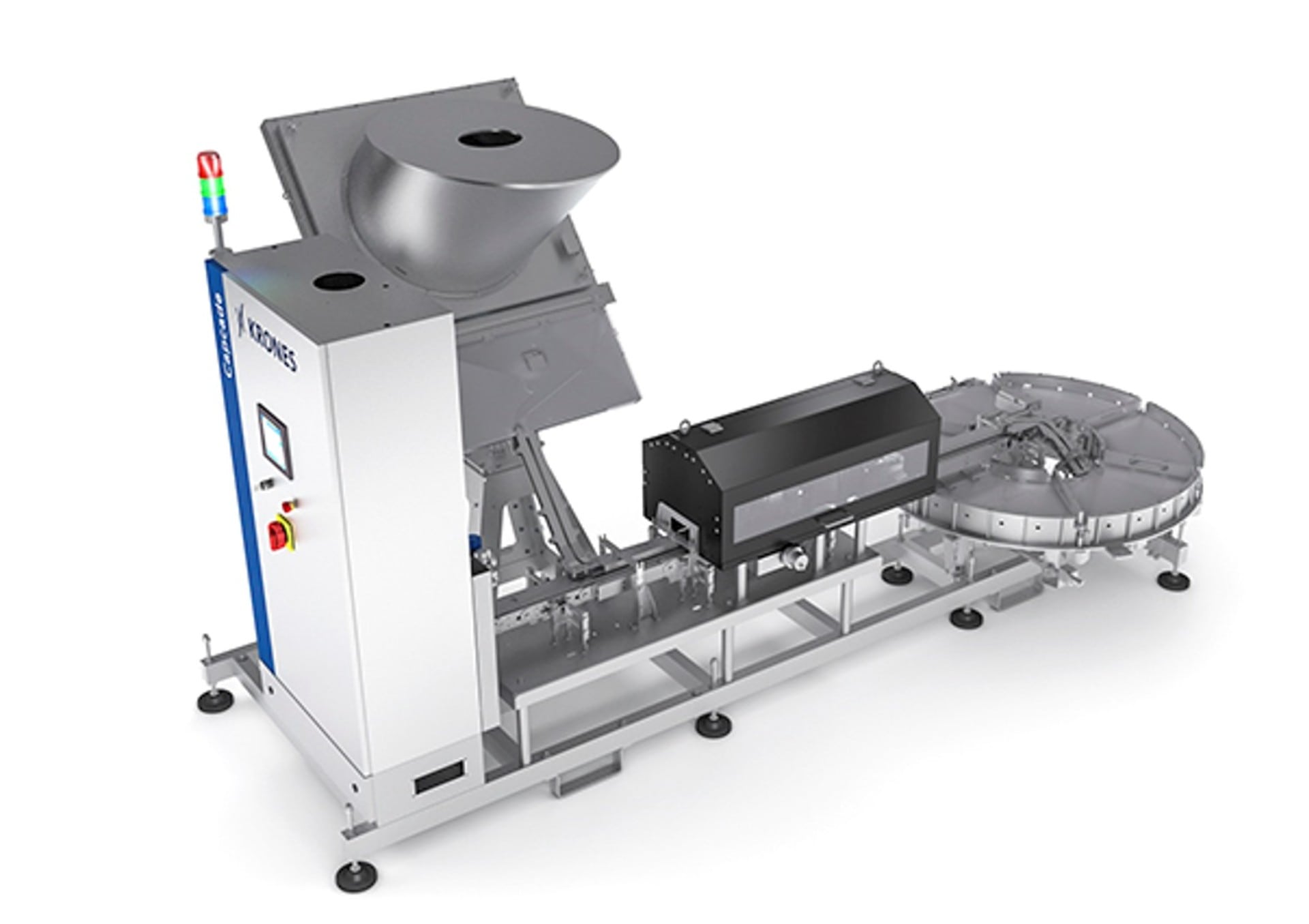

Cap feed system
- Cap feed via Krones Capcade sorter
- Special Krones Checkmat CI inspection unit
- Intelligent sensor inspection unit
- Checks for ovality and cap orientation
- Buffers the sorted caps by means of Krones Accucap Ensures that the machine is emptied
Note: Cap sorter with Checkmat inspection system and Accucap cap buffer system is installed on a separate platform
Benefits to you
Safety for product and production
- Pressureless product tank with sterile-air supply
- Product feed from top
- Special safety function in the control system to transmit a warning signal in the event of a sterile atmosphere malfunction
The perfect technology for every water
- Filling valve with mass flow meter for water without conductivity
- Design with PFR technology for infinite adjustment of the filling speed
For the highest hygiene requirements
- Interior cleaning of the system with trough
- Including CIP return pump
Sophisticated technology - also in the capper
- Capper with central, servo-controlled head drive
- Cam and roller controlled vertical movement of the capping heads
