Krones splicing point detection for cartons
Keeping a lid on it
It is the perfect accompaniment for packers: The Checkmat 725 keeps a very close eye on the cartons while they are being glued. It checks if enough glue has been applied – and thus ensures that the cartons are securely closed when then they reach the retail market.
At a glance
- Direct integration in the lead machine

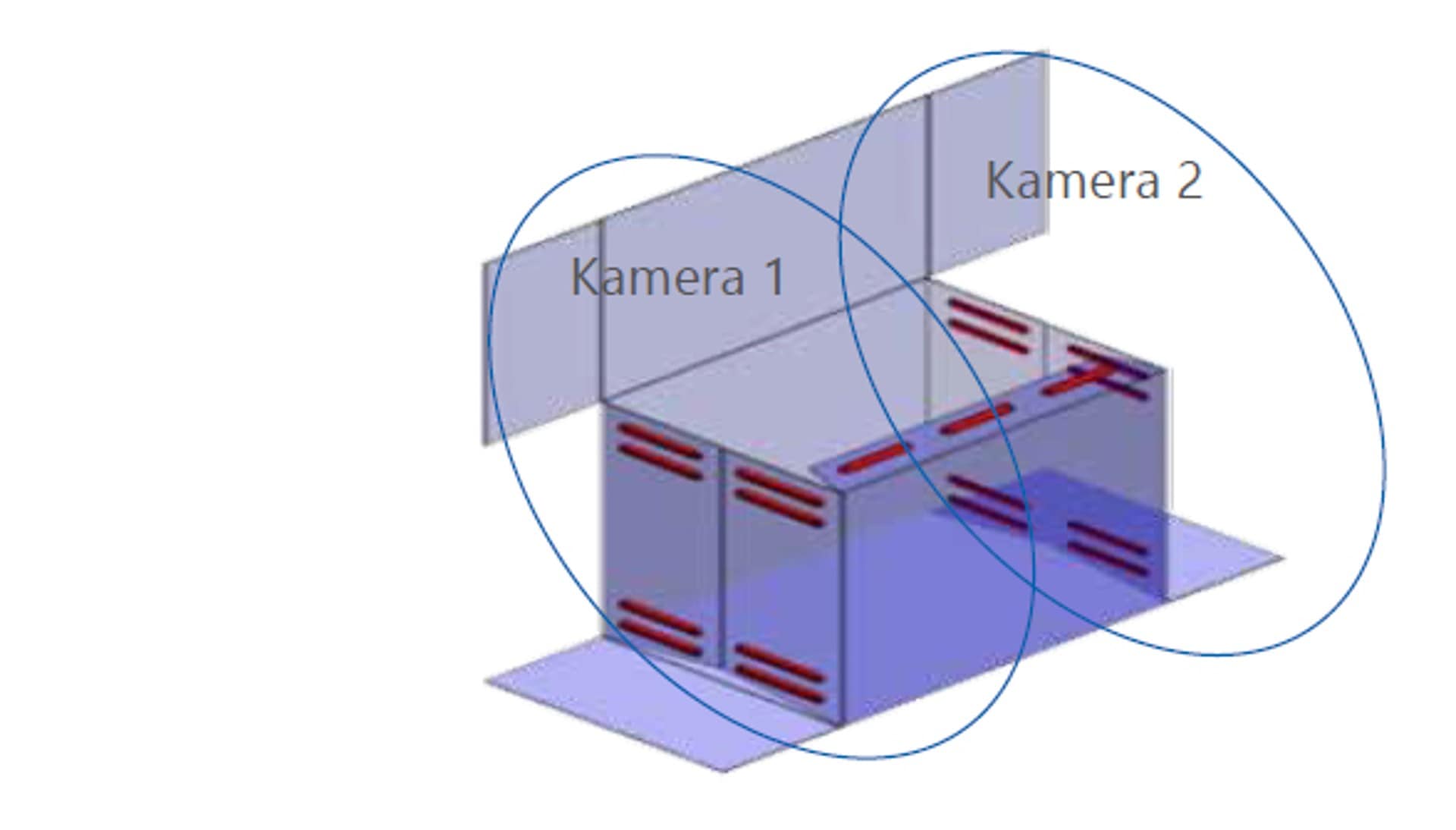

- Verification with a camera system
- 99,9 % detection of consecutive faults
Splicing point detection integrated in the lead machine
| Inspection of the closed cartons for | max. packs per min |
| the application of hotmelt via temperature measurement | 120 |
| the number of glue beads | 57 |
| the length and width of the glue beads | 57 |
Technical features

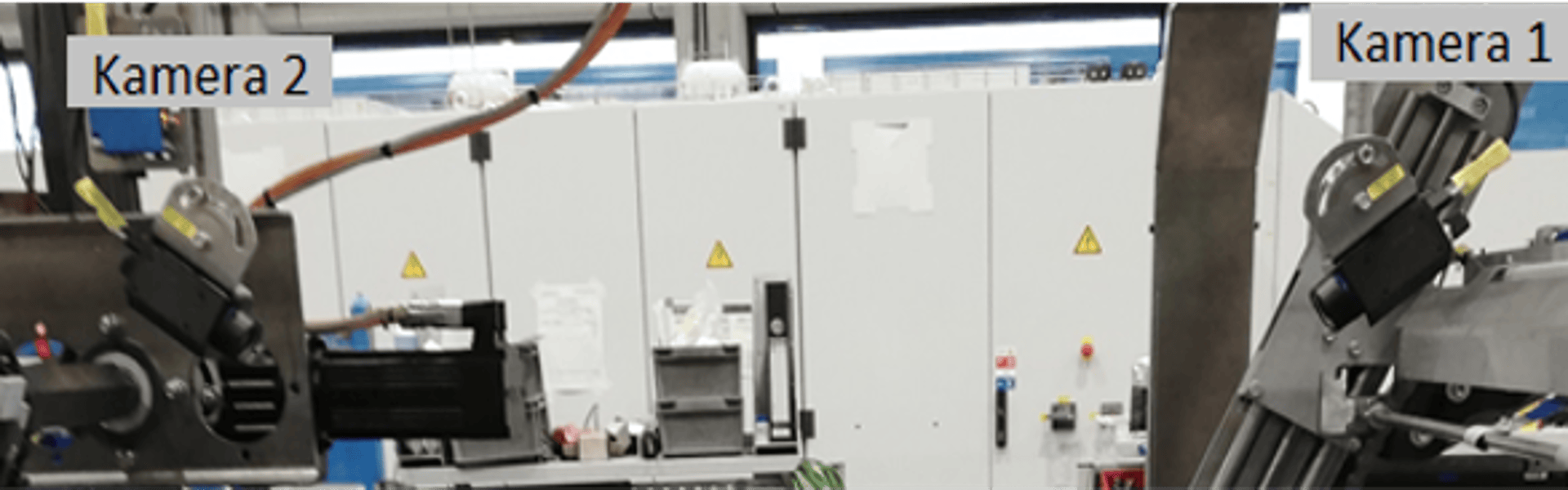

- 2 infrared cameras
- Output: max. 57 or 120 packs per min*
- Max. conveyor speed 0.5 m/s or 1 m/s *
- Visualisation system in the lead machine
- No rejection system provided
- 99.9 % detection of consecutive faults
Variopac Pro W/WT/WTS
Method of operation
- W = wrap-around packaging
- WT = wrap-around and tray packaging
- WTS = wrap-around, tray and tray-shrink packaging
Range of applications
Adjustments at the lead machine type Variopac Pro W/WT/WTS:
- The lengths of the glue beads can be adjusted on the touch-screen.
- Glue beads can be interrupted, depending on the format.
- Spot application and line application are possible.
