Ready for anything: the ergonomic labelling machine with interchangeable labelling stations

Name: Krones Ergomodul
Brand: Krones

The all-round labeller

Ergomodul: Labelling machine for all labels

1/4 videos

The EM series from the Krones labelling systems offers the perfect machine for every application. It offers three main machines, six table diameters, seven labelling station types – and it offers numerous options for combining the individual elements with each other. The Ergomodul is its technological spearhead: A lean, highly efficient machine for ultra-flexible applications.

At a glance

High-tech model of the Krones EM-series
Columnlessmachine with exchangeable labelling stations
Labelling method and speed:
- Pre-cut labels with cold glue up to 72,000 containers per hour
- Pre-cut labels with hotmelt up to 72,000 containers per hour
- Reel-fed labels with hotmelt up to 100,000 containers per hour
- Self-adhesive reel-fed labels up to 60,000 containers per hour

EM = Ergonomic Model

Brochure Krones Ergomodul1.99 MB, .pdf

The EM-series: All models at a glance


	Pre-cut label application with cold glue	Reel-fed labelling with hotmelt	Pre-cut label application with hotmelt	Reel-fed labelling with self-adhesive labels
Machine with table top	Ergomatic	Contiroll	Canmatic	Autocol
Columnless machine with fixed labelling stations	Ergomatic Pro	_	_	Autocol Pro
Columnless machine with interchangeable labelling stations	Ergomodul

Technical features

	Features	Advantage
Material	Table top and machine support made of stainless steel Container table made of aluminium Option: Container table in stainless steel design	Rigid design, easy maintenance and long service life
Dimensions	Slim main machine Significantly reduced footprint in comparison to other labellers	Ease of installation – particularly when replacing existing machines Ease of transport and ingress Can be easily integrated in all kinds of different lines and hall designs
Servo drives use throughout all applications	Main drive Infeed and discharge starwheels Infeed worm	No lubrication required Reduced noise High energy efficiency No stop starwheel required and therefore fewer handling parts and shorter change-over times Increased efficiency through increased coupling speed Prepared for condition monitoring Electronic overload clutch through torque limiting
Machine design	Newly designed machine layout with columnless machine guards on the carrousel Ergonomic replacement of the brushing-on unit, container plate and centring bells Lift-guard with integrated safety switches Stand-alone labelling stations Optimal accessibility from three sides Hygienic design Optimal cleaning properties	Reducer complexity as a red thread: Top ergonomic design Ease of operation
Touch-screen	Optimal accessibility thanks to height-adjustable pivoting arm One single operator panel for the main machine, labelling stations and all PLCs Central saving of all parameters Omission of double infeed avoids faults
Bottle plate control	Separately-driven servo motors All components are UL certified Separate supply ensures easy restart after an EMERGENCY STOP Well-arranged visualisation system on the touch-screen Processing of subcams possible Prepared for condition monitoring Complete diagnostic capability thanks to new bus system Replacement of the motors according to the "plug-and-play" principle	Drive technology of the latest generation Significant reduction of the maintenance-relevant downtimes Certified safety Easy operation
Labelling stations	Changeable labelling stations Connection according to the "plug-and-label" principle Automatic connection of the supply lines for air, water, power and data Integrated motorised height adjustment system Version in hygienic design	Maximum flexibility: all labelling methods possible on one and the same machine Short change-over times Elimination of operating faults Optimal cleaning properties No handling parts required for the height adjustment

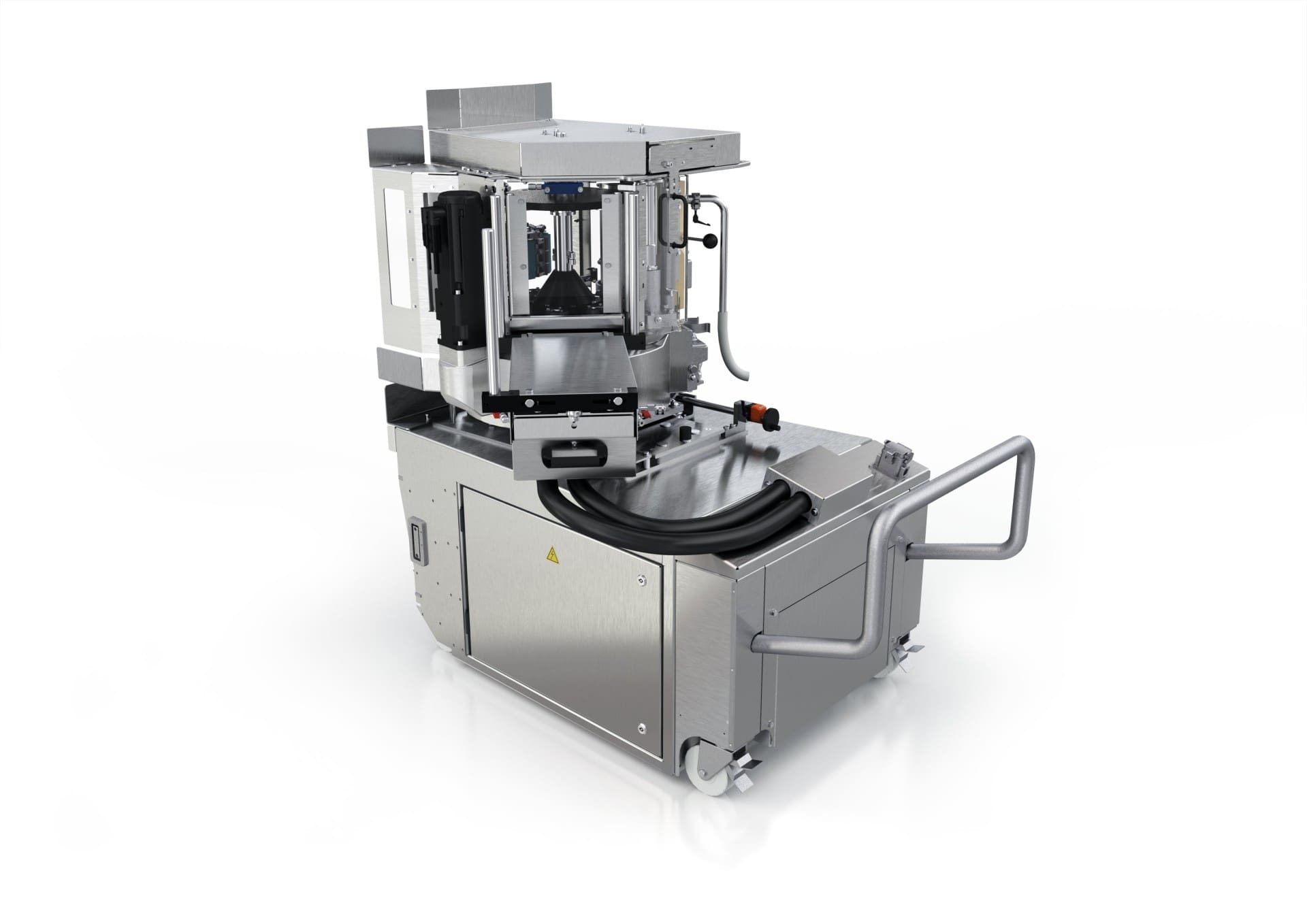

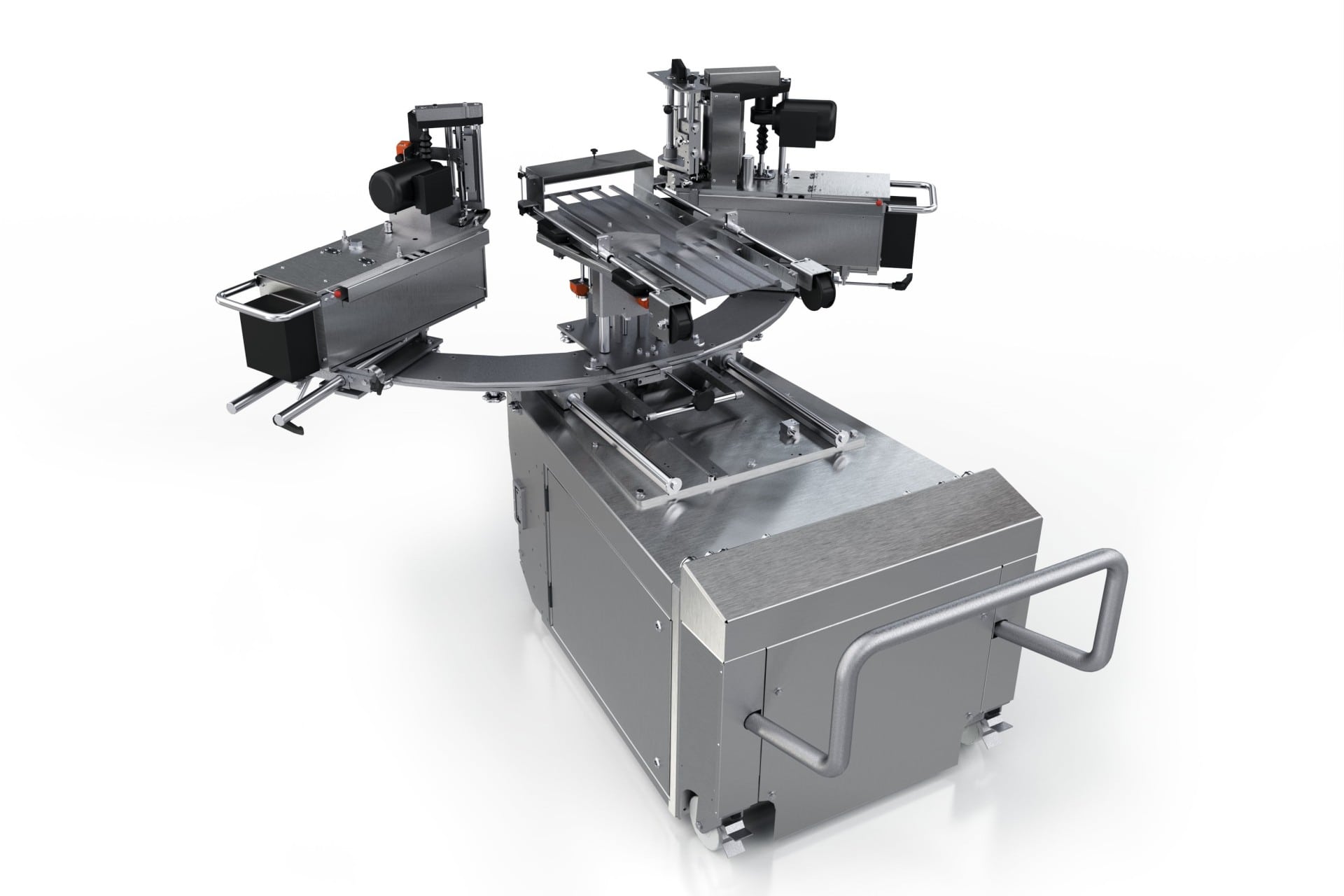

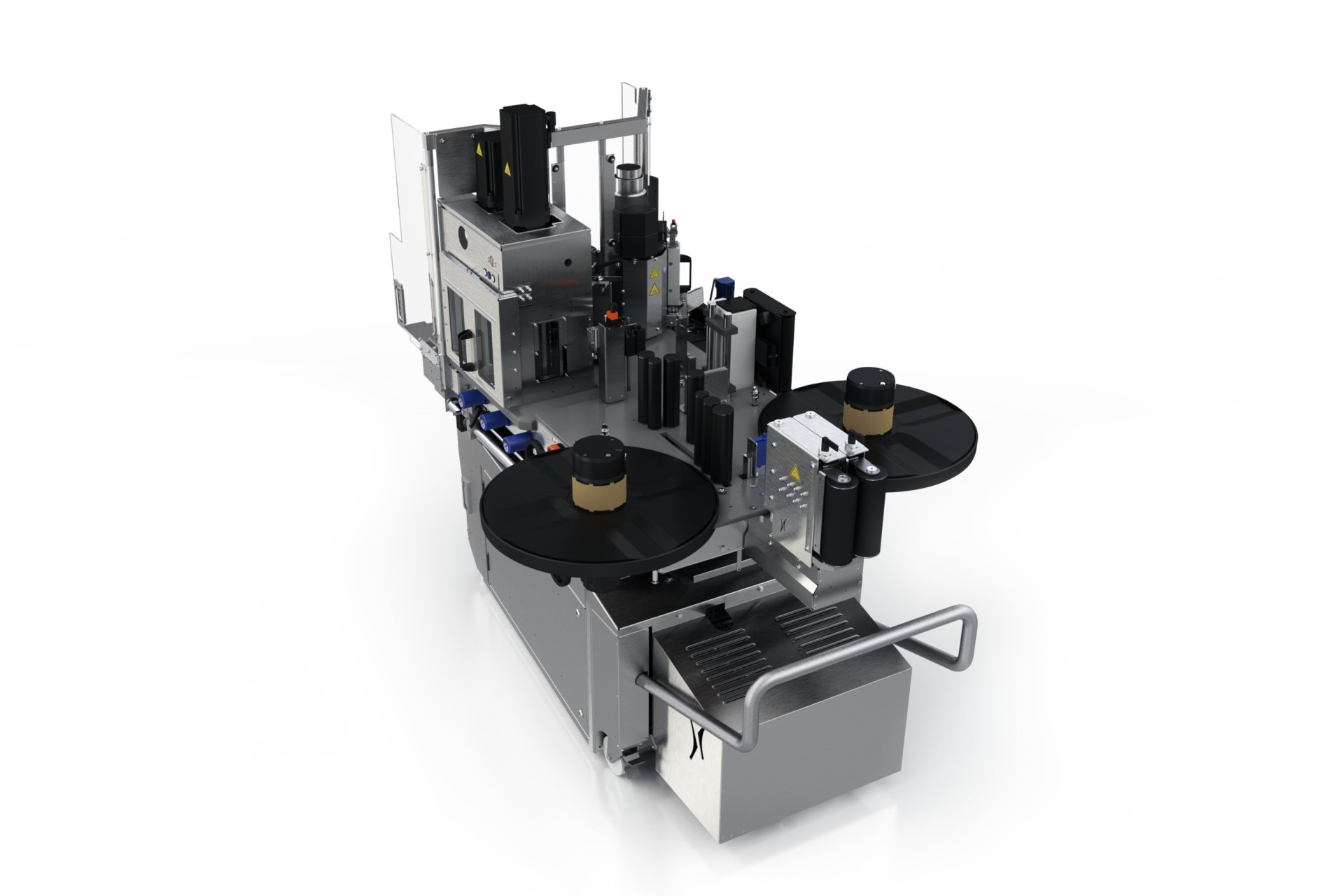

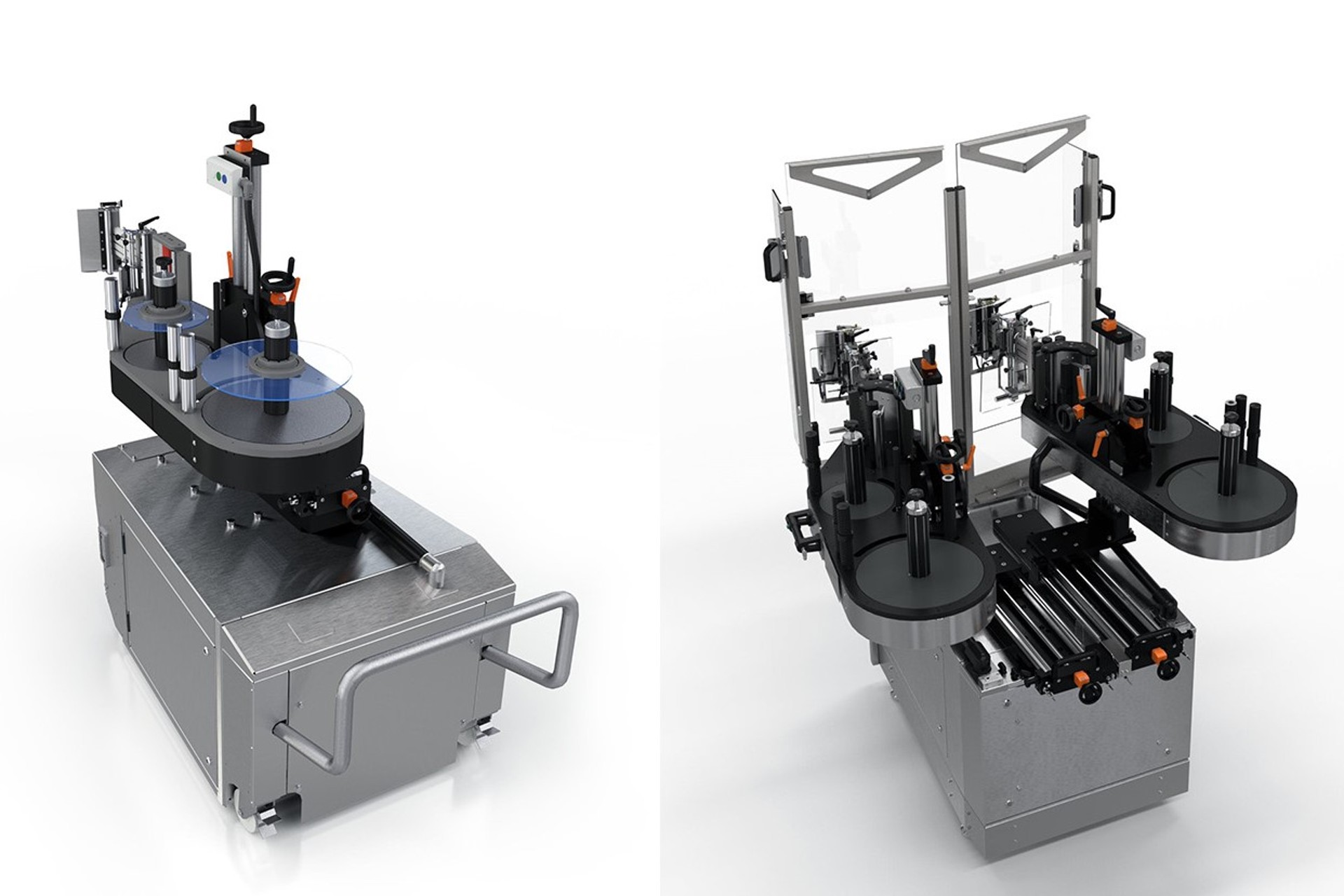

Labelling stations: All models at a glance

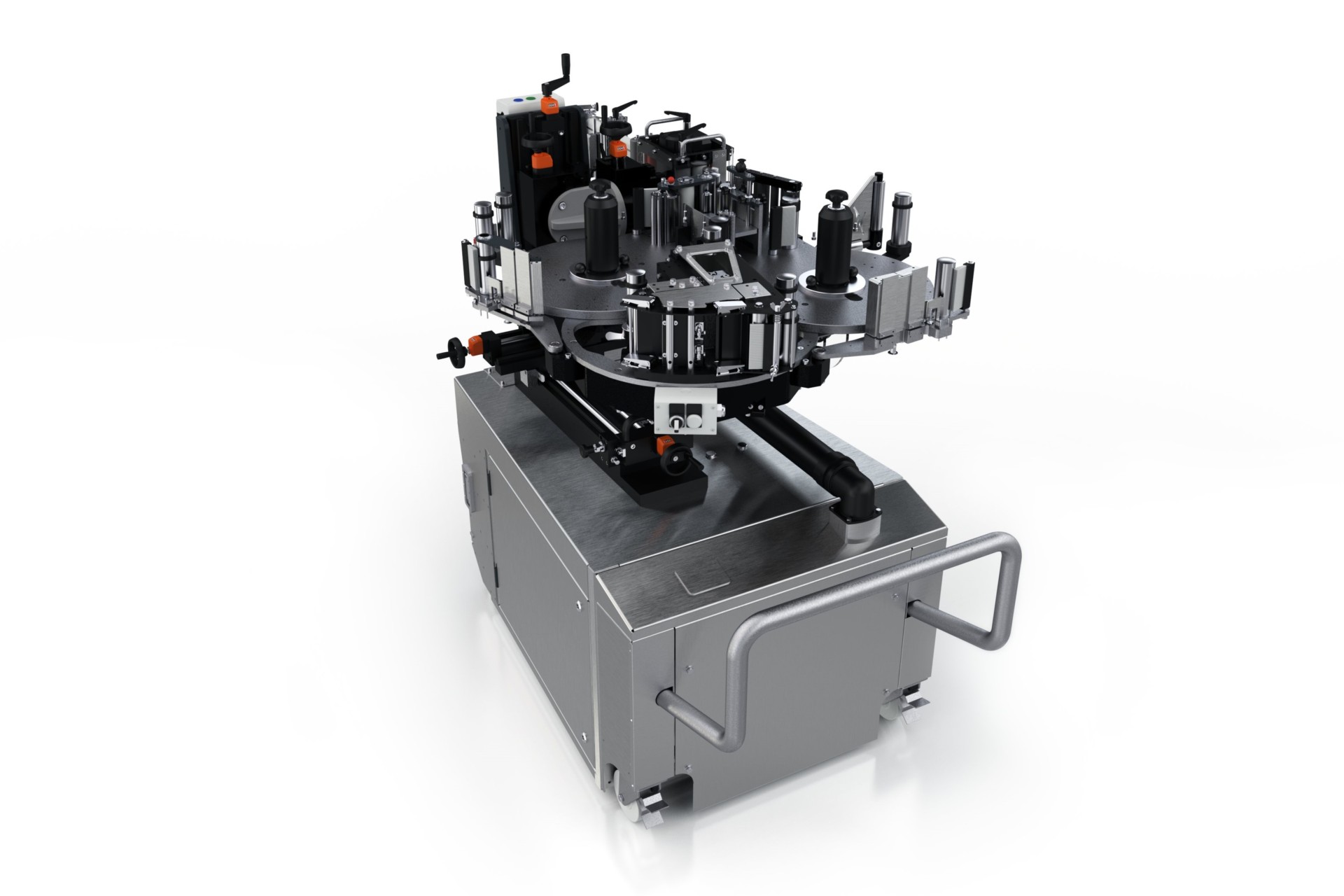

Labelling station for pre-cut labels with cold glue

Technical features and benefits

Hygienic design
- Optimal cleaning properties
Polygon holders for glue roller, pallets and gripper cylinders
- High-precision labelling
All parameters saved in the operator program
- Exactly reproducible settings

Options

Stainless steel labelling housing
Automatic magazine loading system

Benefits to you

Custom-fit technology

The Ergomodul can be equipped with various labelling techniques, labelling station types and optional packages. Simply pick your suitable elements and create your individual machine.

Technology from a single source

Everything fits together here: Right from the start, the complete EM series was designed as a homogeneous product series. Disregarding of how you will configure your machine – the individual components will always seamlessly fit into each other and push each other to the highest performance.

Efficiency as a red thread

How can you perform a lot with little input? The new Krones labellers will show you exactly how that works. Regardless of whether talking about the spare parts management, the footprint, the operator effort or the energy consumption: This complex series has been designed for the maximum efficiency up to the smallest detail.

Investment for the future

The EM series comprises all the know-how of more than 70 years of Krones development. The result? An advanced machine series which particularly provides you with the following: the certainty to be equipped for any challenge of the future.

This is why the Ergomodulis enviro-classified:

Use of servo motors of the efficiency class IE4 or similar
No drive train lubrication required
Always use of food-grade lubricants
Media measuring package and optional energy measuring package
Significantly reduced noise level
Safety standards according to the Machinery Directive 2006/42 EG
Consideration of the 2006/95/EG and EU-EMV Directives (2004/108/EG)
Design according to::
- EN ISO 12100
- EN ISO 13849-1
- EN 60204-1
- EN 61000-6-2
- EN 61000-6-4
- EN 13849
- EN 62061

This product is enviro classified

The Krones sustainability programme enviro: top technology for ecologically efficient production.
