Cross-flow filtration newly defined

Filtration is one of the key processes in brewery operations. In addition to a bright, shiny filtrate with optimum turbidity, technological requirements also include an improvement in the physical stability of the beer. The filtration achieves high microbiological safety for the filled product.

On top of this, there are also economical requirements: Users want a long filter service life, low operating costs and systems that are easy to operate. These requirements are crucial to the new cross-flow filtration concept.

At a glance

• Controlled transmembrane pressure depending on the position of the module in the filter unit
• Flow reversal at the membrane modules using a double infeed
• Targeted backflushing of individual membrane modules during filtration and cleaning

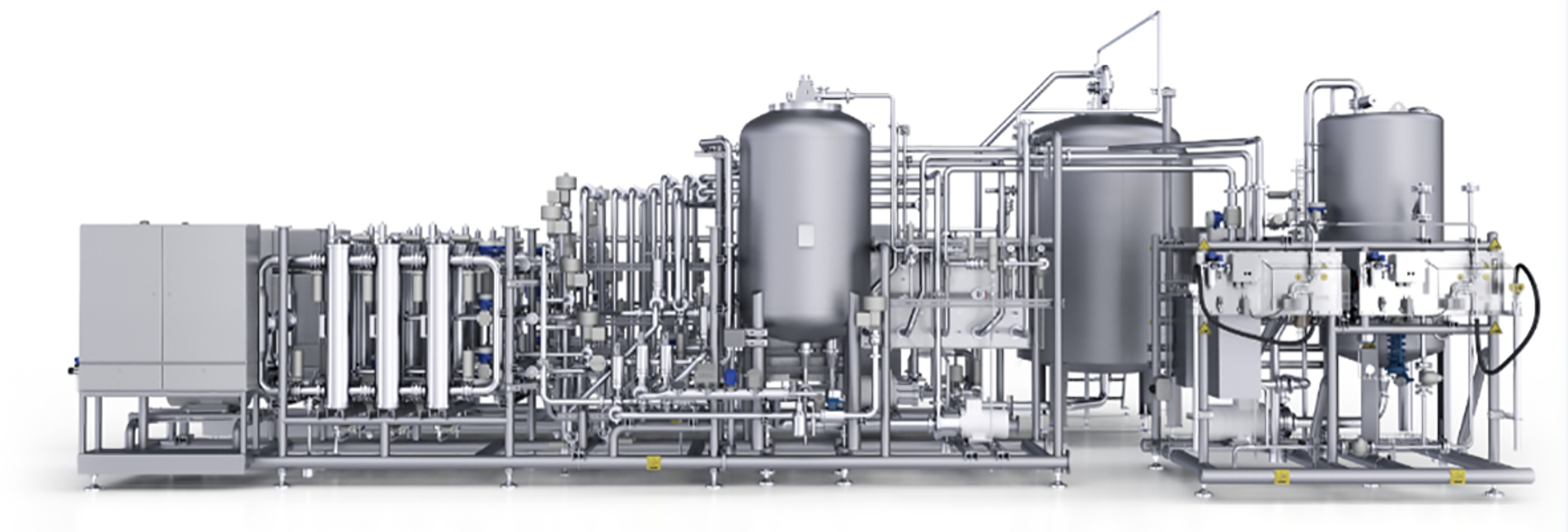

The values from the pilot system show that the Steinecker Phoebus membrane filtration system provides a high beer quality and filtration capacity.

• The pilot test showed consistent beer clarification with a yeast cell amount of 0 in the filtrate, as well as a considerably low iron absorption compared to kieselguhr filtration.
• The membrane characteristics and filtrate quality were analysed in the test performed by the Technical University of Berlin.

Efficient filtration

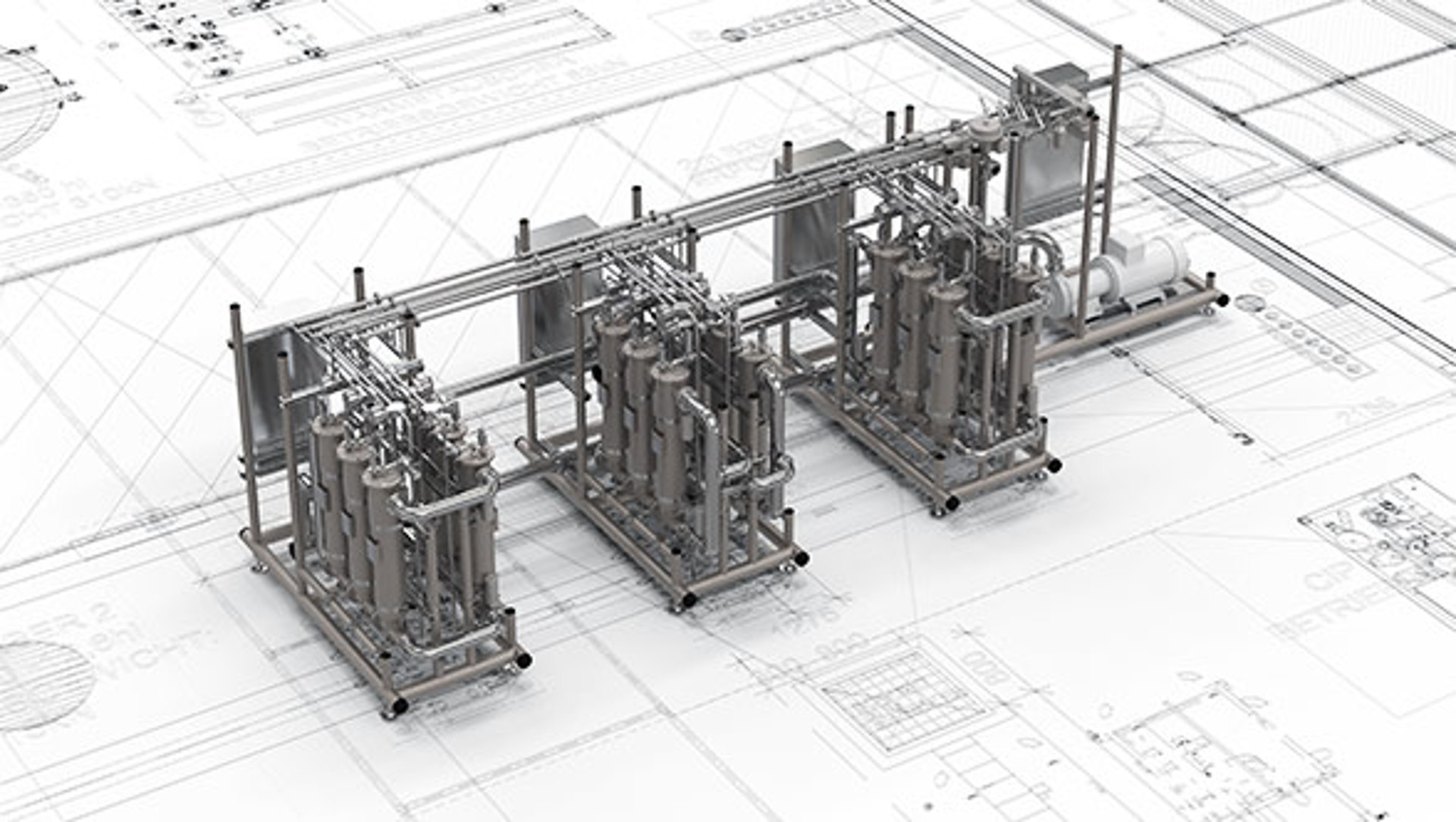

Thanks to the series connection of the membrane modules, the cross-flow process requires a lower pump output and smaller nominal pipe diameters when compared to a parallel connection.

Controllable filtration concepts

It is possible to individually regulate the transmembrane pressure for different filterability of different beers. The sedimentation tank also guarantees optimal service life with a high number of yeast cells.

Hygienic plant operation

The ability to provide targeted, intensive flushing during cleaning and to provide 85 °C sanitisation allow a high standard of hygiene to be achieved.

Specific membrane development

Optimum filtration results are ensured through our close cooperation and continual further development together with our membrane manufacturer.

One-stop shop

Krones has the filterability of your beer under control thanks to our complete process technology, from the brewhouse right through to filtration.
