Dynamic fermentation

To create high-quality beers, the fermentation process should be steady, fast and reproducible. This ensures that the extract is efficiently degraded, the desirable flavours are created and undesirable substances are reduced within short time.

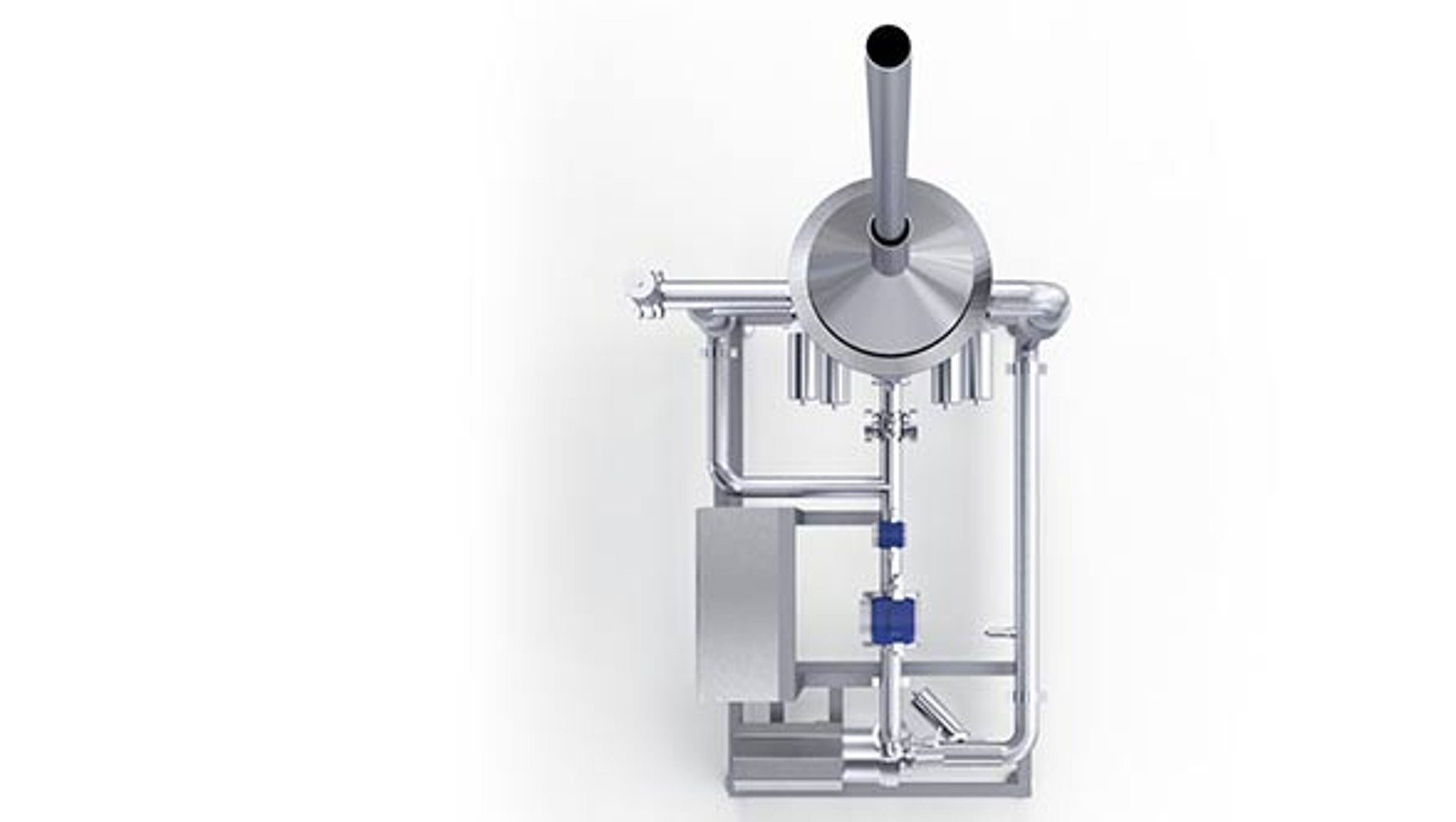

Furthermore, gentle yeast cropping and fast cooling are required. Steinecker Poseidon provides the brewer with a compact, retrofittable unit for an efficient and high-grade fermentation process.

At a glance

• Retrofittable Poseidon unit for the dynamic and continuous fermentation process
• Recipe-specific support of the fermentation process by systematic mechanical influence of the convection
• Improved yeast cropping and particle discharge by means of a displacer

The Poseidon opens new possibilities for fermentation processes as this is the first system to allow individual zones in the tank to be systematically mixed or settled. In addition,

• optimal mixing in the fermentation tank can promote the degradation of extract and diacetyl.
• yeast can be cropped with higher vitality and lower loss of beer.
• an external cooler can be included for increasing the cooling capacity.
• efficient dry hopping with optimal leaching and mixing can be ensured.

The additional option to combine several units to one cascade provides the benefits of continuous fermentation. This means that

• there are no change-over times for filling, draining and cleaning, which in turn results in reduced consumptions and load peaks.
• by increasing the cellar capacity, for instance, seasonal output peaks can be mastered.

Easy retrofitting
The Poseidon fermentation units can be retrofitted in nearly all cylindro-conical tanks. The hygienic design and omission of moving parts allow for optimum cleaning of the units.

Optimised mixing
The dynamic supportof the convection improves mixing in the tank. This prevents temperature layers and results in efficientdry hopping.

More efficient sedimentation
Even while recirculation is in progress, yeasts and solids are allowed to sediment as the central lance and the top opening enable systematic recirculation in the top tank zone.

Even separation of particles
Yeast and particle cropping without channel formation is enabled thanks to the integrated displacer which accelerates cropping and reduces loss of beer.

High flexibility
The option to provide a cascade by combining several units enables continuous fermentation, if required, and thereby increasing the system output.
