    Checkmat Inspection systems for fillers and cappers

      Inspection systems Checkmat for fillers and cappers

      All-around check for maximum safety and performance

      Is the fill level in the bottle okay? Is the cap position straight? Does the tamper-evident ring justify its name? The Checkmat inspection systems give you a clear answer to each of these questions. For example by exactly checking the fill level of the various containers up to within one millimetre and by thoroughly scrutinizing the bottle caps from all sides – regardless whether these are crowns, plastic and aluminium screw caps or tethered caps.

      Who is the ideal team partner for the Checkmat inspector? The Krones filler management solutions. They monitor and record important production data providing you with valuable knowledge about the best optimisation.

      At a glance​

      • Fill level inspection unit and missing cap inspection unit
        • Fill level inspection unit with high-frequency, infrared camera, gamma or X-ray technology
        • Cap and tamper-evident ring detection with sensor and camera technology*, also suitable for tethered caps
      • Filler management
        • Production management
        • Quality management
        • Safety management
      • Automatic or manual adjustment of the rail as well as the inspection unit height

      * Prerequisite: Cap blower for the removal of water drops from the cap and the support ledge.

      00 - Article Item 14057
      Brochure Krones Checkmat Inspection systems for fillers and cappers
      0.91 MB, .pdf

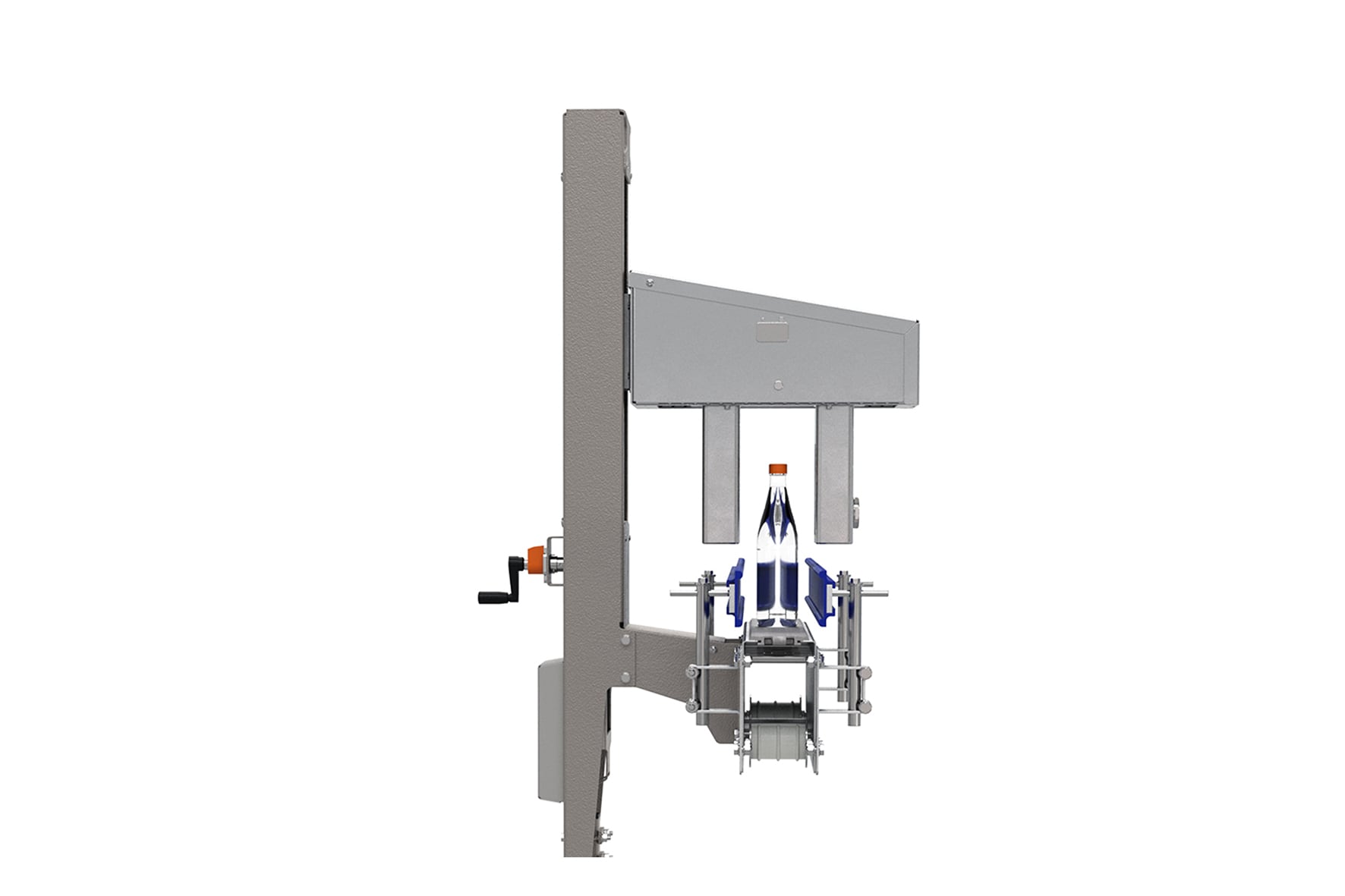

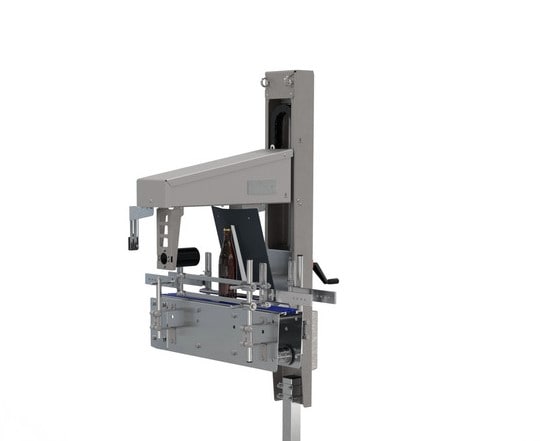

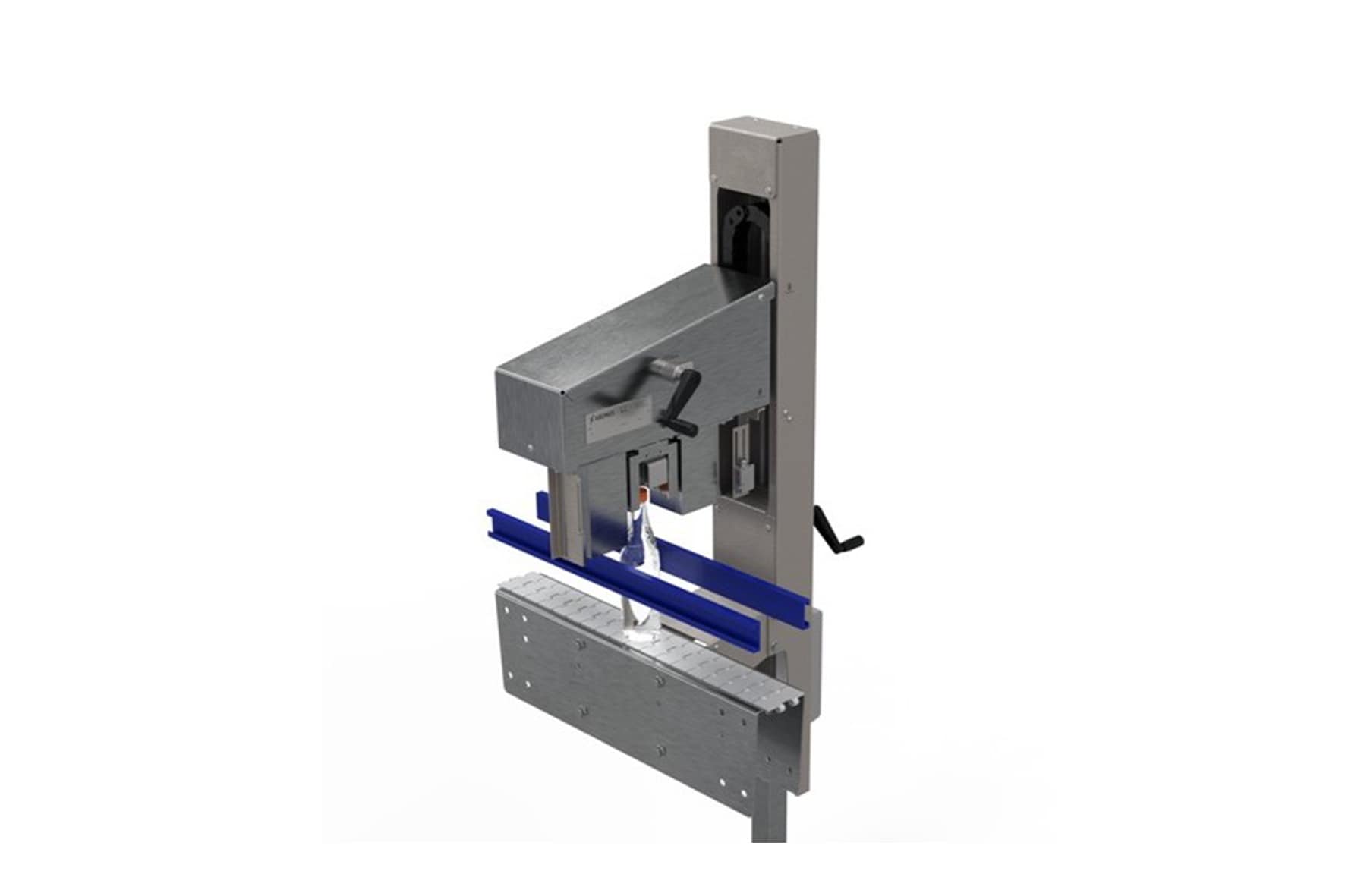

      Fill level inspection

      Technical features

      • 1 sensor for underfill and overfill inspection
      • Display of analog measured values
      • Output: up to 72,000 containers per hour

      Range of applications

      • Suitable for slightly foaming and non-foaming products
      • Not suitable for:
        • metallised labels or foiling
        • metallised containers
        • oils or products containing oil
        • beverages with an alcohol content of more than 50 percent

      Benefits to you

      • No registration rights required
      • Operation without any radiation protection officer

      Technical features

      • 1 sensor for underfill and overfill inspection
      • Display of analog measured values
      • Output: up to 72,000 containers per hour

      Range of applications

      • Suitable for:
        • slightly* foaming and non-foaming products
        •  label-free zones
      • Not suitable for containers with imprints or embossing at fill level height

      Benefits to you

      • No registration rights required
      • Operation without any radiation protection officer

      * Clear transition between liquid and foam

      Technical features

      • 1 camera for underfill and overfill inspection
      • Display of analog measured values
      • Output: up to 72,000 containers per hour

      Range of applications

      • Suitable for:
        • transparent containers
        • slightly* foaming and non-foaming products
        • label-free zones
      • Not suitable for containers with imprints or embossing at fill level height

      Ihre Vorteile

      • Keine Anmeldebestimmungen nötig
      • Betrieb ohne Strahlenschutzbeauftragten

      * Clear transition between liquid and foam

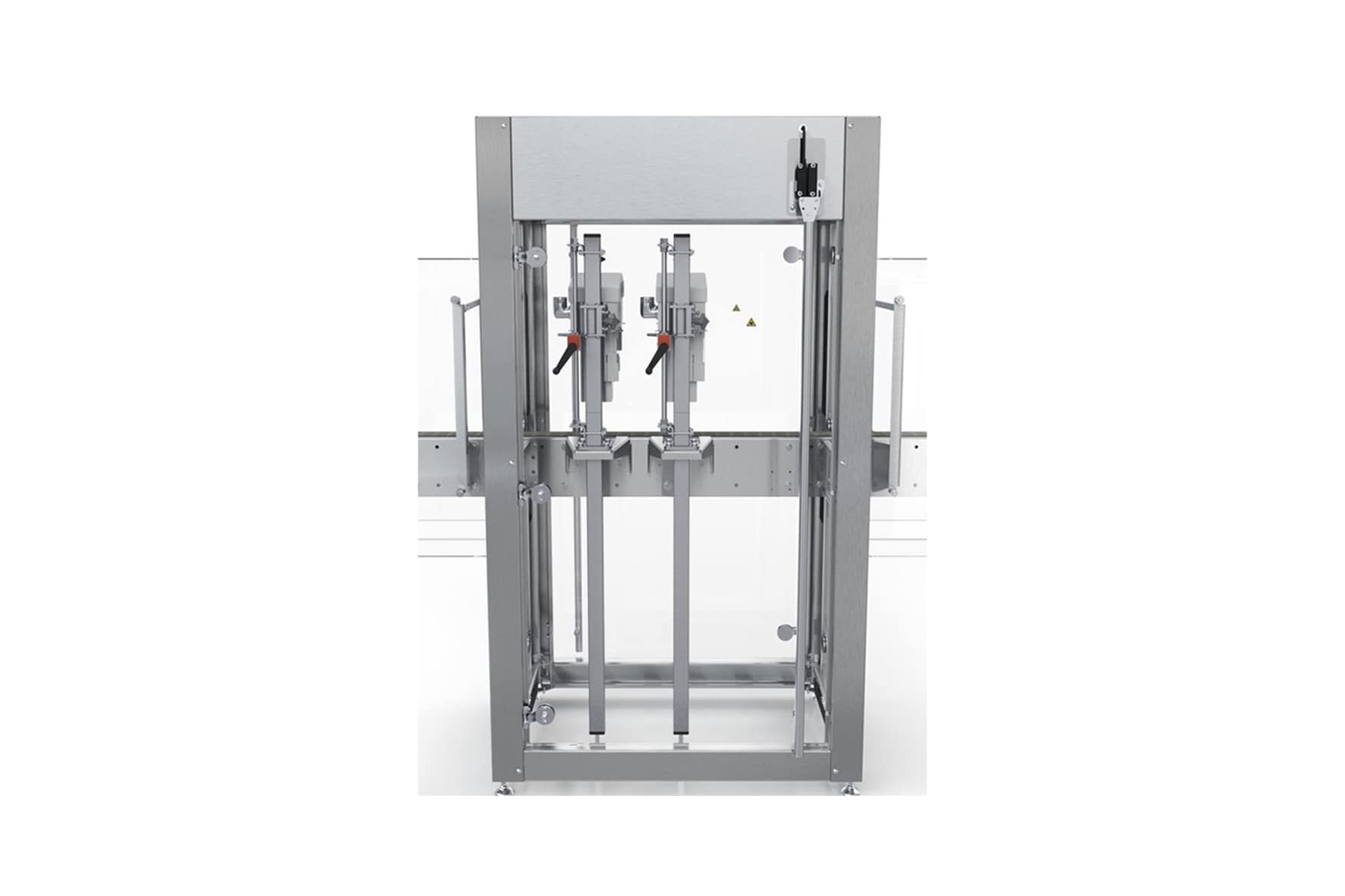

      Technical features

      • 2 sensors for underfill and overfill inspection
      • Automatic gamma source shut-off when machine has stopped
      • Output of up to 120,000 containers per hour

      Range of applications

      Suitable for slightly* foaming and non-foaming products

      Requirements

      • Application requirements
      • Radiation protection office

      Benefits to you

      Suitable for glass and PET containers and cans

      * With consistent foaming behaviour

      Technical features

      • 2 sensors for underfill and overfill inspection
      • Output of up to 120,000 containers per hour

      Range of applications

      Suitable for slightly* foaming and non-foaming products

      Requirements

      • Application requirements
      • Radiation protection officer

      Benefits to you

      • Precise results – regardless of the product and the label
      • Suitable for glass and PET containers and cans

      * With consistent foaming behaviour

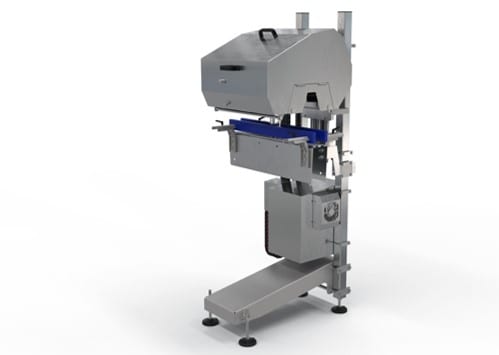

      Cap inspection

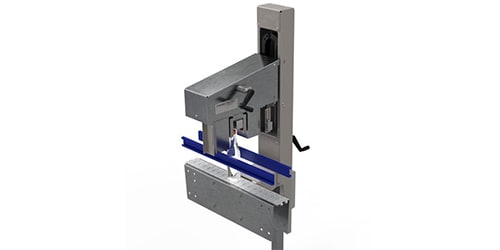

      crowns and plastic screw caps

      Technical features

      • 1 unit
      • 1 sensor
      • Output: up to 72,000 containers per hour

      Inspection of the caps for

      Presence

      00 - Article Item 38757
      00 - Article Item 38756

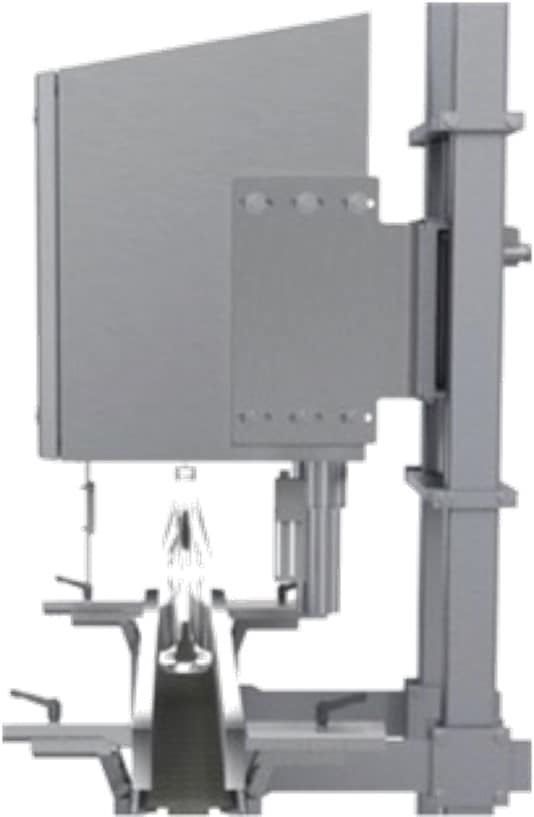

      Crowns

      Technical features

      • 1 unit
      • 2 cameras, LED lighting
      • Output: up to 72,000 containers per hour

      Requirements

      No water drops on the caps

      Inspection of the caps for

      Presence

      Slanted position

      Damage > 90°  Diameter



      Crowns

      Technical features

      • 1 unit
      • 1 camera with an inspection range of 360°
      • LED lighting
      • Output: up to 72,000 containers per hour

      Requirements

      No water drops on the caps

      iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

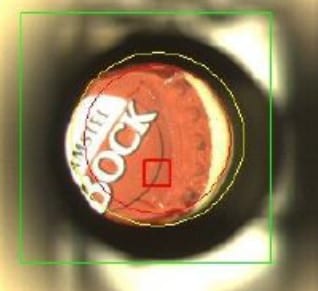

      Inspection of the caps for

      Colour and logo  Correct cap (product mix-up)
      Position of the printed image Damaged printed image

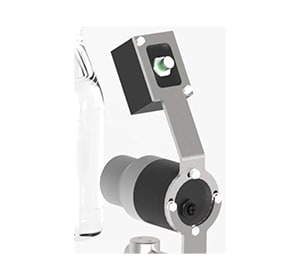

      Plastic screw caps

      Technical features

      • 1 unit
      • 1 compact camera
      • Output: up to 72,000 containers per hour

      Lateral inspection area inspection of the caps for

      Colour on the side

      00 - Article Item 38759

      Benefits to you

      • Maximum product quality and safety thanks to continuous container inspection
      • Increased line efficiency thanks to automatic detection and rejection of faulty material
