    Krones Craftmate G
    Krones Craftmate G

      Compact glass filler for the low output range

      Glass filler for beer and CSD

      The Craftmate C has been on the market since 2015 – inspiring small and medium-sized breweries and craft breweries all around the world ever since. Thanks to the major success of the compact can filler, Krones has now also developed a dedicated filler for the low output range for glass applications: the Craftmate G. In terms of technology, it is identical to its bigger brothers and sisters in the Modulfill series, but in terms of space requirements it matches the compactness of the Craftmate C – thus making it the ideal solution for small and medium-sized breweries who place stringent demands on their filling processes.

      At a glance

      • Filling of beer and CSD in glass bottles

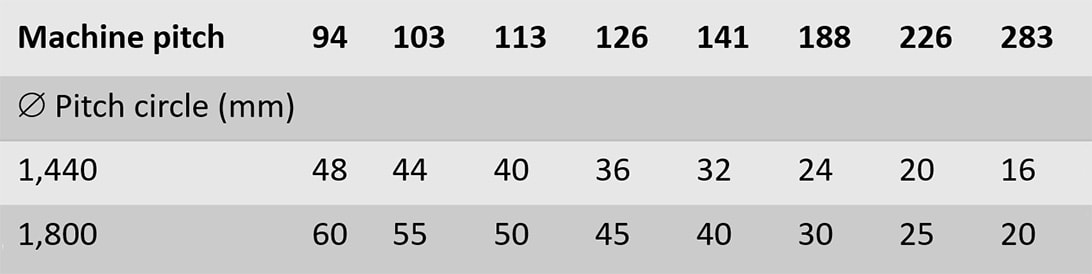

      • Two pitch circles: 1,440 and 1,800 mm
      • Output range: Up to 24,000 containers per hour
      • Attractively priced filling technology in the quality you are used to from Krones
      • Compact design
      • Up to two cappers can be integrated (crowns, screw caps or aluminium roll-on caps)
      Brochure Krones Craftmate G
      0.64 MB, .pdf

      The components

      The components
      Easy access thanks to swing doors
      Handling parts can be changed without tools
      Table top with rooftable design
      Proven vent tube counter-pressure filling system
      Krones operator panel in touch-screen design
      Control cabinet with integrated pneumatic controller for the valve manifold


          Products                            Beer and carbonated soft drinks
          Containers Glass bottles
          Closures Crowns, aluminium roll-on caps, plastic screw caps
          Filling system Counter-pressure filler with vent tube
          CIP cups Manual insertion of CIP cups
          CIP Closed CIP circuit
          Height adjustment Automatic
          Basic assembly Rooftable table top (stainless steel) in inclined design for reliable draining of cleaning agents
          Design basis Compact machine for applications with very limited space requirements
          Controller Siemens TIA or Allen Bradley
          Guidance handling parts Raptec (can be changed without tools)
          Cappers Up to two cappers can be integrated (crowns, screw caps or aluminium roll-on caps)

      The filling system

      • Reliable fill level determination via the vent tube
      • End of filling after liquid contact with vent tube
      • Low-oxygen filling through several pre-evacuation steps with intermediary CO2 flushing
      • Electro-pneumatically controlled filling valve functions
      06 - Image with Hotspots 33942
      Vent tube
      Product stem
      Gas needle
      Vacuum channel
      Snifting channel (CIP return channel)
      Gas needle and Product stem

      Benefits to you

      Double the flexibility

      Craftmate G is your specialist for filling in the low output range – offering great flexibility at the same time, with the ability to fill both beer and carbonated soft drinks in glass bottles.

      Tried-and-tested technology

      The electro-pneumatically actuated filling valves work extremely reliably, and thanks to the interchangeable vent tube, the fill quantity can also be determined. The technology that is installed has already proved itself for many years in the Modulfill series.

      Short change-over times

      All handling parts can be changed quickly, easily and without the need for tools.

      Easy to clean

      An inclined table top and manually inserted CIP cups ensure easy machine cleaning.

      Compact design

      The supply of product is held in a ring bowl installed on the filler carousel, and the valve manifold and control cabinet are positioned right next to the filler. This way, the Craftmate G requires only very little space in the bottling hall.

      Low transport costs

      Of course, these compact dimensions are also a bonus when it comes to transport. Since the entire machine can be dismantled into two compact modules, the costs for shipment can be kept low.
