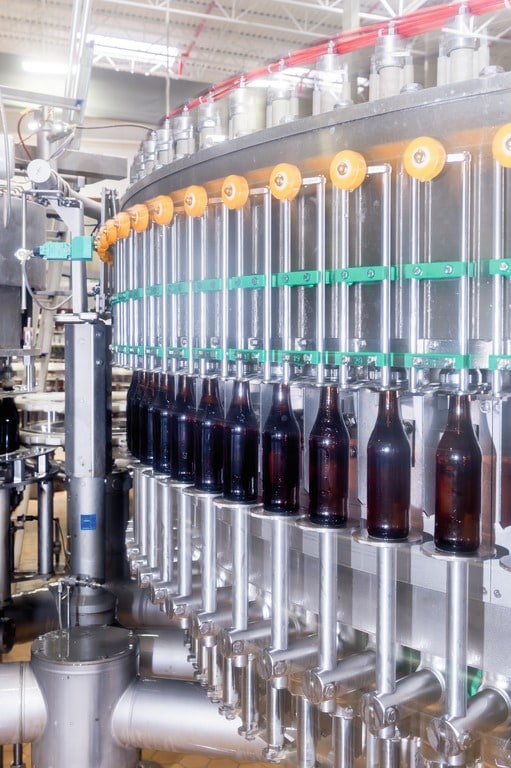

Reliable filling of beer and flavoured beer in glass bottles

Mechanical filling system

Reliable fill level determination via the vent tube
End of filling after liquid contact with vent tube
Low-oxygen filling through several pre-evacuation steps with intermediary CO₂flushing
Electropneumatic filling valve
One filling speed

Field of applications

Suitable for all beer types

Output

Up to 78,000 containers per hour

HRS = Height fillingsystem, Return gas tube, Short tube

Brochure Krones filling systems for beer

1.20 MB, .pdf

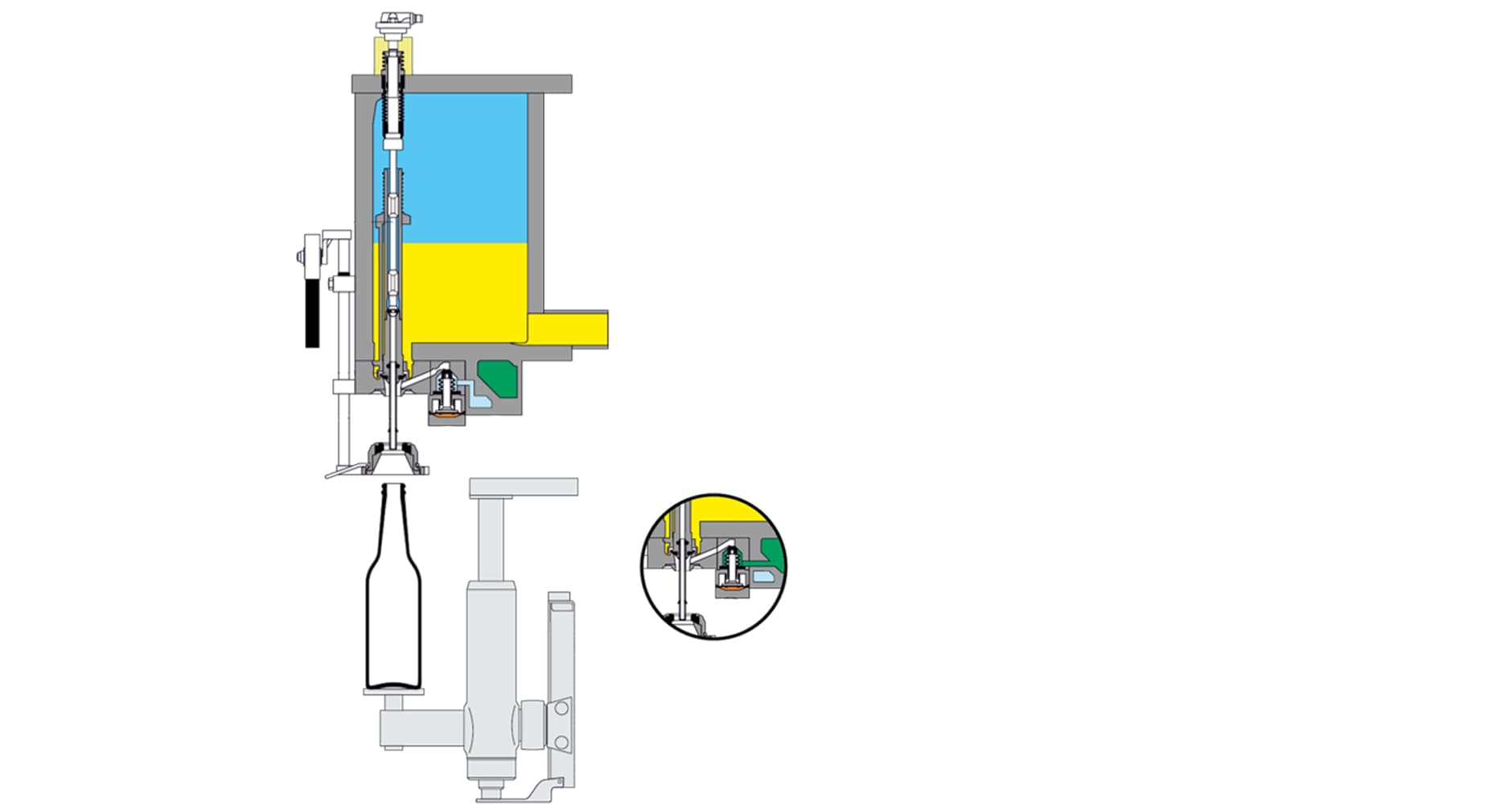

Functional principle of the valve

First the glass bottle is pressed on and then it is pre-evacuated several times. The filling process will start as soon as the same pressure prevails in the ring bowl and the bottle. If the liquid level reaches the end of the vent tube, no more gas can escape from the bottle -and the filling valve closes. After a settling phase, the pressure in the head space of the bottle is released via the snifting valve and the filled product exits the machine.

Viscosity: < 10 mPa·s
Pulp: ≤ 0.4 mm/proportional < 10 %
Fibres: 1 x 5 mm/proportional < 5 %
