    Can seamer Modulseam

      A seamer that is perfectly tailored to the Krones can filler

      Can seamer in hygienic design

      Krones integrated its many years of experience in the filling and capping technology sectors in the Modulseam. The key factor: the can seamer is precisely designed to complement the Modulfill VFS-C filler – and therefore works hand in hand with it.

      At a glance

      • Perfect seamer for Modulfill VFS-C can filler
      • Output: up to 96,000 cans per hour
      • Included by standard:
        • Bubble breaker
        • Under-lid gassing with CO2
        • Quick-change handling parts
        • Continuous servo drive concept
        • Central lubrication unit
        • Quickly adjustable quick-set cam for a rapid change-over from steel to aluminium cans
      • Optional: Arrangement in compact clean room (in a block with the Modulfill VFS-C)
      Download
      Brochure Krones Modulseam
      0.43 MB, .pdf

      Facts and figures

      Application: Beverages

        Capping heads 4 6 8

      12

      18 (future options)
        Maximum output* (cans
        per minute)
      320 750 1,000 1,600** 2,200**
        Adjustment range for can
        height (mm)
      88 – 205 88 – 205 88 – 205 88 – 205 88 – 205
        Can diameter (mm) 53 – 84 53 – 84 53 – 73 53 – 73*** 53 – 73***

      *Depending on the can format
      **Planned output for this size
      ***Depending on the filler pitch

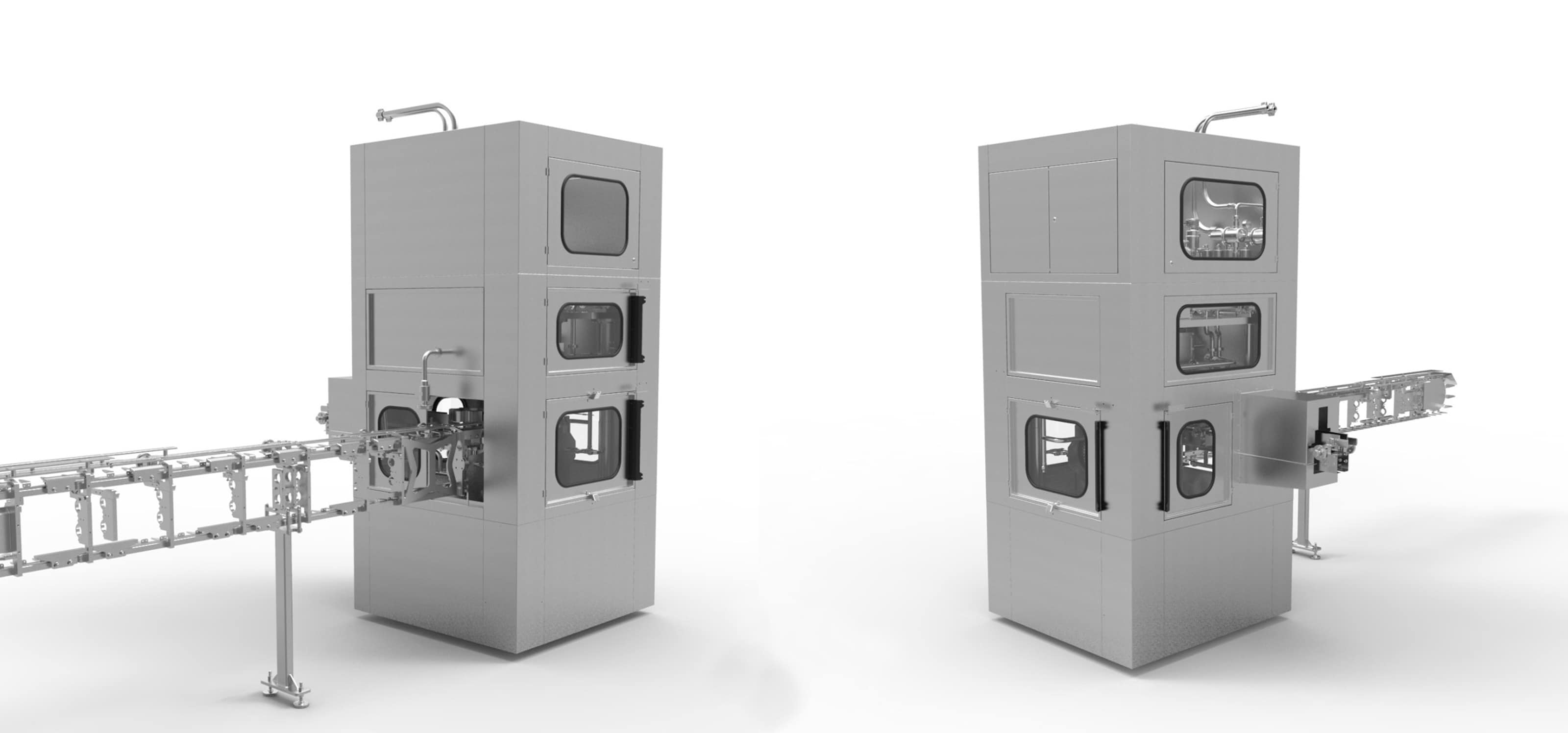

      Accessible from all sides

      Accessible from all sides

      Changing over the discharge starwheel

      Maintenance of the control drum

      • Swinging out of the quick-set cam for the second operation
      • Maintenance

      Access to the electrical components

      Setting up seaming chucks

      Setting up of lid feeds, gassing starwheel, guide parts

      • Adjustment of lid feed
      • Inspection of the lid magazine
      • Adjustment at the quick-set seaming cam (steel/aluminium)
      • Maintenance

      Adjustment of guidance parts for a change-over at the infeed table

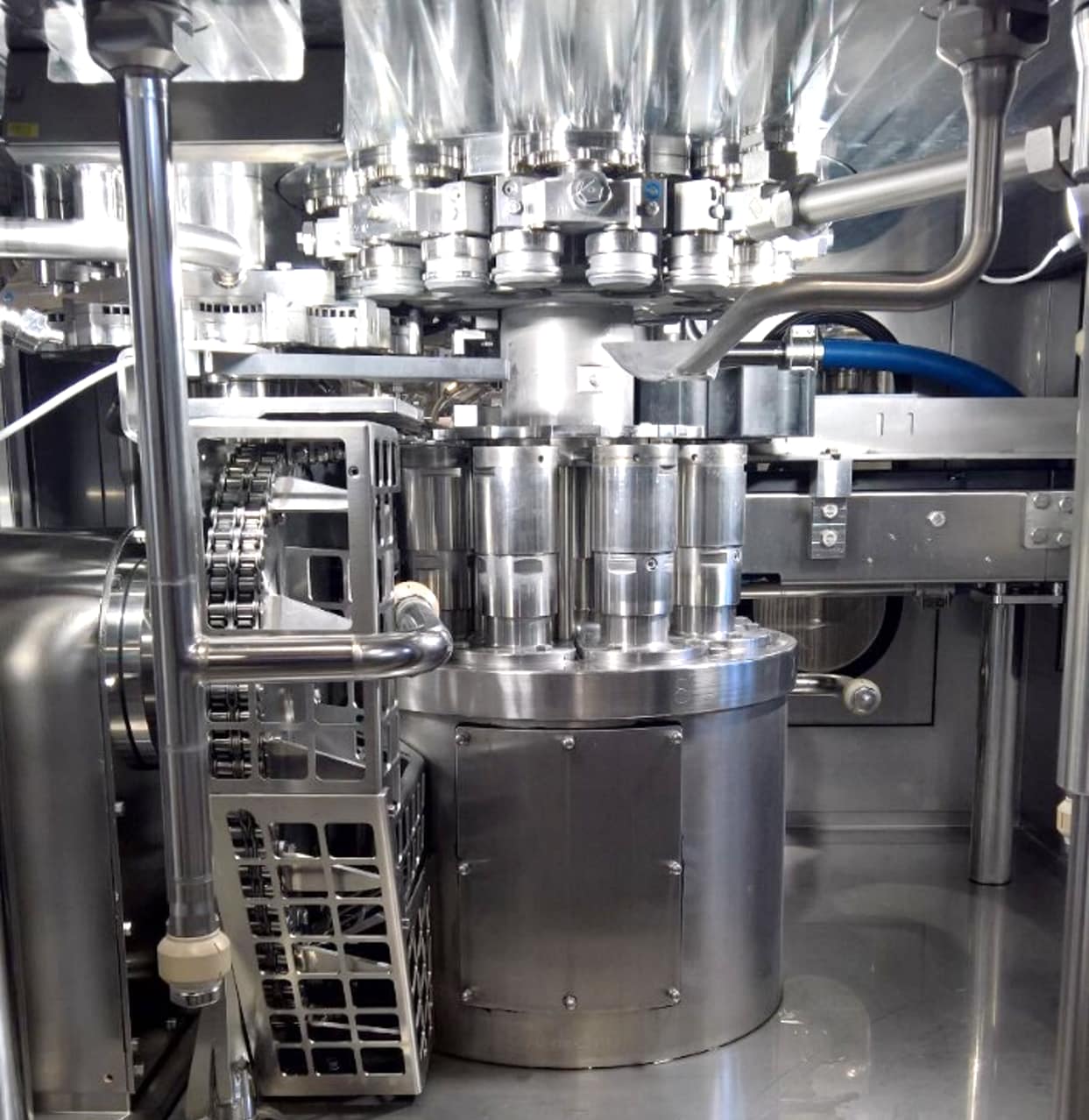

      Version in hygienic design

      • Inclined table top for optimum cleaning
      • Supply hoses accommodated outside the process area as far as possible
      • All components in the process area are made of stainless steel
      • Process area separated from drive and supply area
      • Easy access for change-over and maintenance
      • Excellent cleaning with foam nozzles already possible in the standard version

      Benefits to you

      Central media supply

      All media are centrally connected via the filler valve manifold; also the internal control and distribution of the media is part of the filler-seamer block. This means that no separate interfaces are required on the can seamer.

      Hygienic design

      Hygiene plays a central role: The entire seamer area including components is separated from the drive area. Cables and supply hoses are located outside the process area, and all components in the process area itself are made of stainless steel. An inclined table top ensures that the media can drain off in a targeted manner, and foam cleaning of all gas channels is also possible.

      Good accessibility

      The open design of the seamer allows excellent accessibility during type change-overs or in case of maintenance.

      Quick change-over

      Numerous features ensure that the change-over to new sizes or types is quick and requires little manual intervention:

      • The change-over from steel to aluminium cans is possible in only a short time thanks to the quickly adjustable quick-set seaming cam: The settings are reproducible and the change can be made in less than five minutes.
      • Moreover, thanks to a system for automatic height adjustment, it takes only a few steps to change over to other container sizes. Full parameter management and height adjustment of the entire block is done via the filler's HMI, including, for example, the position of the bubble breaker.
      • Thanks to the quick adjustment system of the guide rails on the transfer chain, no manual adjustment work is necessary here either.
