    Krones Robogrip
    Back
    Robogrip robotic packer and palletiser

      The all-rounder for packing and palletising

      Large operating range

      Please activate JavaScript to play this video.

      Flexibility is one of the special features of a robot which is used for packing and palletising. In addition to packing and unpacking tasks, the Robogrip masters palletising tasks for single packs, rows or layers. With a large number of optional gripping or multifunctional tools the Robogrip is ready for any and everything. Its large operating range enables the robot to access an amply dimensioned operating surface and thus ensures utmost efficiency during packing and palletising.

      At a glance

      • Articulated-arm robot with four movement axes
      • Output up to 550 clock pulses per hour, depending on the load-bearing capacity with a standard pivoting area of 2 x 180°
      • Safe operation with a controller monitored safety system
      Download
      Download brochure Krones Robogrip
      1.17 MB, .pdf
      Assemblies – gripper tools
      Bar-type gripper unit
      Bar-type gripper unit
      • Picks up layers of pre-grouped new glass containers and positions them on the pallet
      • Inserts layer pads, trays or inverted trays using vacuum grippers which are available as an option
      • Picks up layers of pre-grouped new glass containers and positions them on the pallet
      • Inserts layer pads, trays or inverted trays using vacuum grippers which are available as an option
      Shutter gripper head
      Shutter gripper head
      • Puts the non-returnable pack down on the pallet gently and without pressure
      • It is especially suitable for sensitive packs
      • Puts the non-returnable pack down on the pallet gently and without pressure
      • It is especially suitable for sensitive packs
      Fork gripper head for carton blanks
      Fork gripper head for carton blanks
      • Depalletises carton blanks
      • Picks up the stack of blanks directly from the pallet and places it on a carton magazine
      • Depalletises carton blanks
      • Picks up the stack of blanks directly from the pallet and places it on a carton magazine
      Jaw gripper head
      Jaw gripper head
      • Grips complete layers of returnable packs from all four sides
      • Processes also full crates with an optional hook system
      • Grips complete layers of returnable packs from all four sides
      • Processes also full crates with an optional hook system

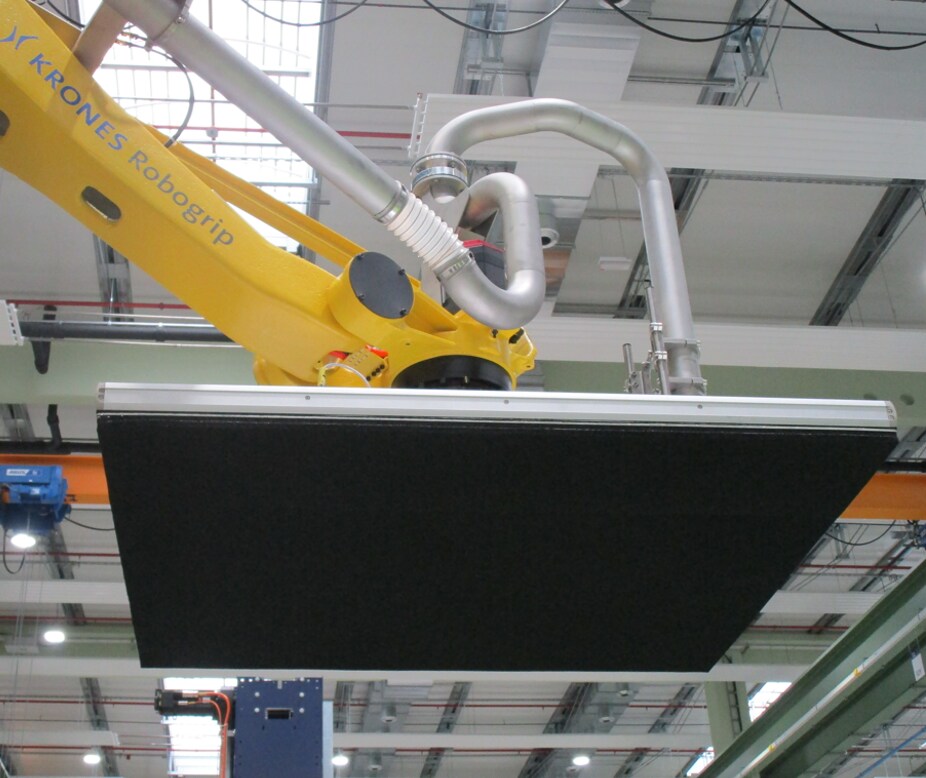

      Suction gripper unit
      Suction gripper unit
      • Can use suction to lift both empty and full cans layer by layer and set them down at the location they are required for further processing
      • Further handling at floor level possible
      • Can use suction to lift both empty and full cans layer by layer and set them down at the location they are required for further processing
      • Further handling at floor level possible
      Cup gripper unit
      Cup gripper unit
      • Unpacks and packs complete layers or rows of containers from or into crates, displays or cartons
      • Unpacks and packs complete layers or rows of containers from or into crates, displays or cartons

      Benefits to you

      Low space requirements

      Its compact design enables the Robogrip to be installed on small areas and in low halls.

      Precise and gentle product movements

      Servo motors grant exact Robogrip movements that are gentle on your products which is not only of benefit for you but also for your products.

      Wide field of application

      Packing, palletising, sorting – the robot can be used for a wide variety of most different tasks. It also safely and reliably masters exacting combined tasks.

      Individual equipment

      Many different gripping tools are available for the Robogrip. Simply configure your individual robot that will fully meet your requirements. Our Krones product specialists will gladly consult you about which solution is the best for your needs.

      Low maintenance requirement

      The Robogrip is characterised by its low maintenance requirements and its high availability. This is ensured by its maintenance-free servo drives and the low number of wear parts.
