    Trio of pump models ensures reliable delivery of beverages and liquid foods

    You need to accept cookies to use this functionality.

    Not even nine years have passed since they were added to Evoguard’s portfolio, and yet it feels as if they’ve always been part of it. We’re talking, of course, about Evoguard’s hygienic centrifugal pumps. They now come in three different models, which we will describe in more detail here.

    We’ll be the first to admit that the pumps’ product names aren’t exactly self-explanatory. At first glance, H1CP, HSCP and HMCP may not immediately indicate their intended application or even that they’re pumps at all. But there is a very clear system behind the nomenclature – and once you know what the letters stand for, you’ll see the names are in fact self-explanatory.

    The three main models at a glance

    Hygienic centrifugal pump H1CP – single stage

    This is Evoguard’s standard model, which was also the first pump that Evoguard unveiled at the 2013 drinktec trade fair. Is a single-stage, non-self-priming pump whose design strengths include smooth surfaces in the product space and elastomer seals that are flush mounted, for easy cleaning and hygienic design. They are also certified under both the European Hygienic Engineering and Design Group (EHEDG) and US 3-A Sanitary Standards.

    Image 28218

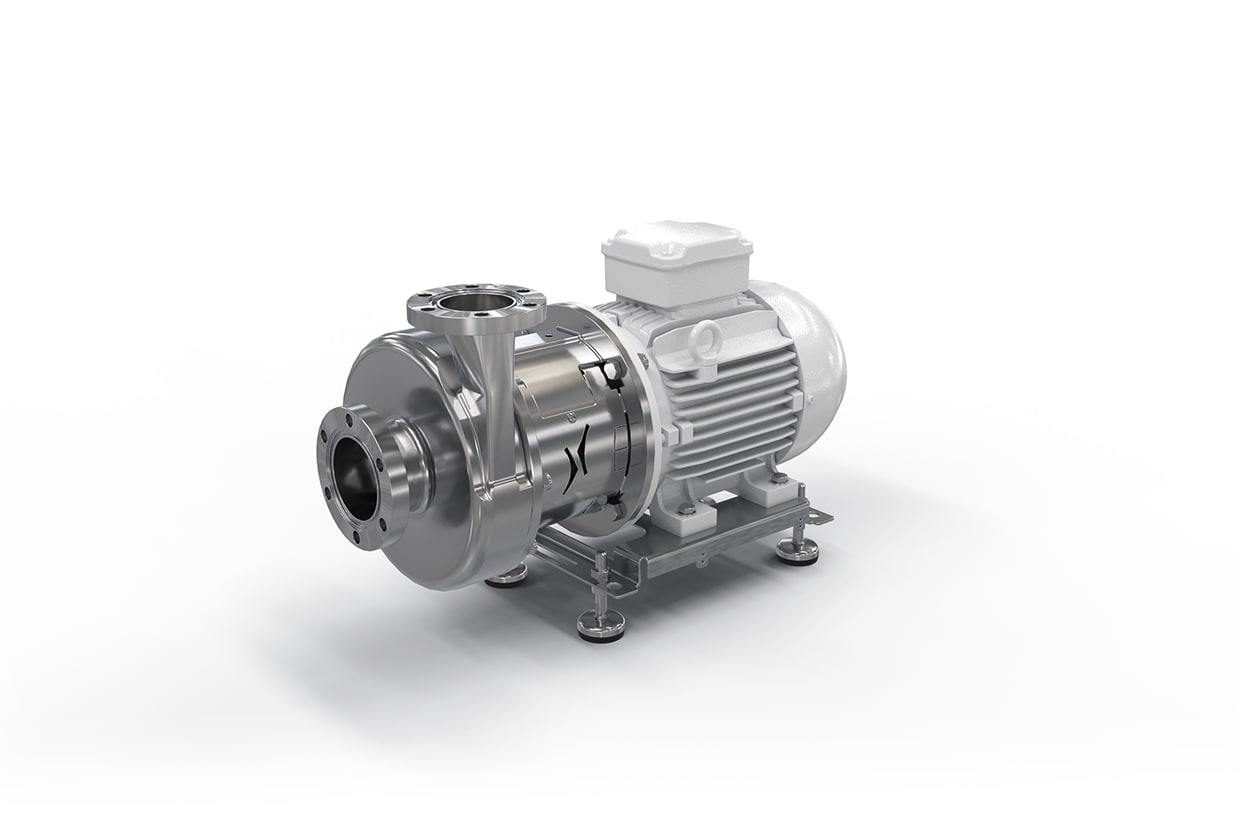

    H1CP hygienic, single-stage centrifugal pump

    Hygienic centrifugal pump HMCP – multistage

    This multi-stage, non-self-priming centrifugal pump can be equipped with two to five impeller stages, so the pressure within the system can be increased by as much as 15 bars. That makes this pump perfectly suited for processes involving thermal product treatment or filtration.

    One major difference between this pump and others on the market is that all parts coming into contact with the product are made of solid material. Evoguard remains consistently true to its claims of quality and hygiene.

    Image 28219

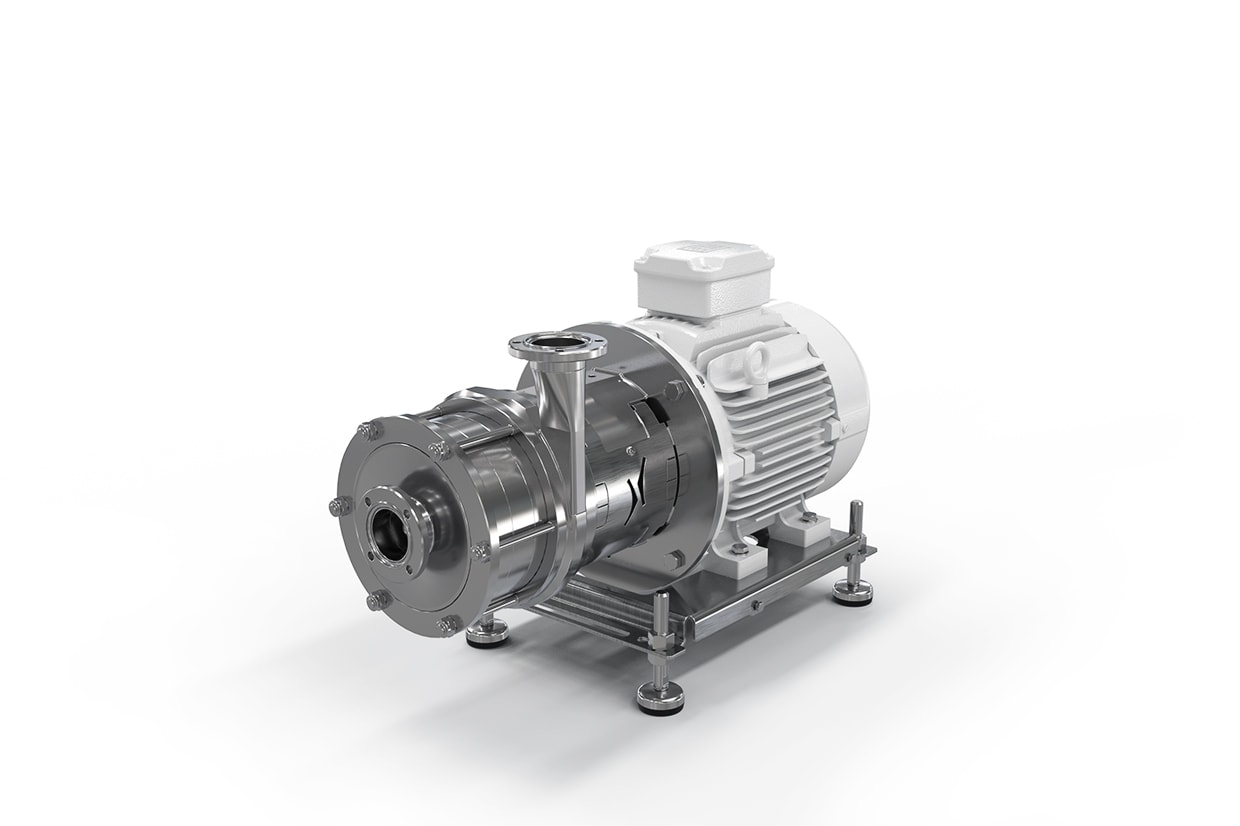

    HMCP hygienic multi-stage centrifugal pump

    Hygienic centrifugal pump HSCP – single stage

    Three years ago, Evoguard expanded its pump portfolio to include a self-priming version. The design is similar to the H1CP, so spare parts inventories can be kept low. Functionally speaking, it is this pump’s excellent suction power that truly sets it apart, as lines can be evacuated quickly and even larger air pockets don’t present a problem for it.

    Image 28220

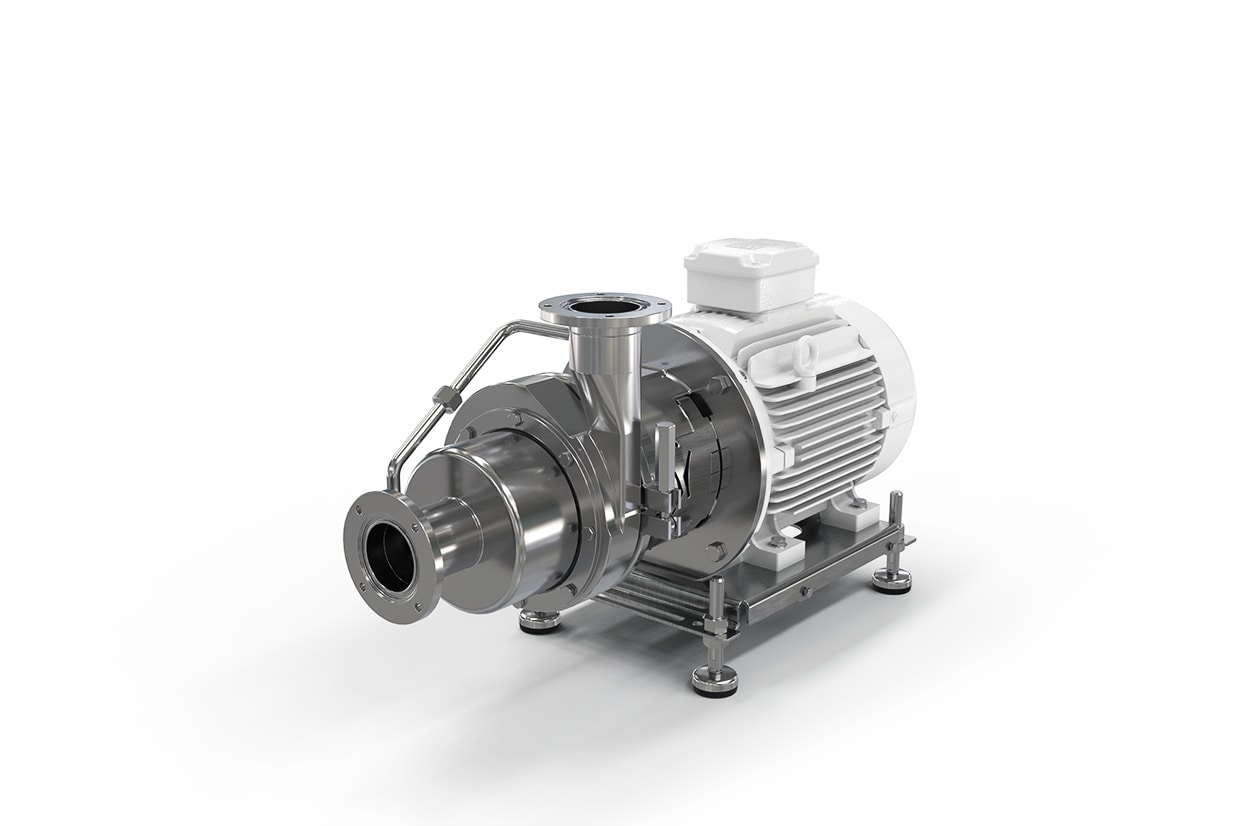

    HSCP hygienic self-priming centrifugal pump

    Incidentally, all pump models are equipped with hygienic mechanical shaft seals as standard and thus meet the specifications of the EHEDG. The seals also offer two additional benefits:

    • Their modular design means that they can be configured individually, which in turn simplifies spare parts keeping.
    • At present, the seals are used in just two sizes. This likewise yields benefits when it comes to spare parts procurement, which translate to cost savings.

    Moreover, all surfaces that come into contact with the product are finished to Ra 0.8 µm as standard. This not only makes cleaning easier but also means that all three pump types are ideally suited for use in the production of sensitive products.

    Configure pumps online

    Of course, all of the pump models are available in different sizes, so that Evoguard can deliver the right pumps for a wide range of requirements and output ranges. Incidentally, it is now possible to configure the pump that’s right for your application, right down to the details, quite conveniently online. Simply enter the desired operating point and other data into the configuration tool and select optional accessories. You’ll then receive the requisite data sheets complete with pricing information for the selected pump.

    This way to the configuration tool

    Image 28221

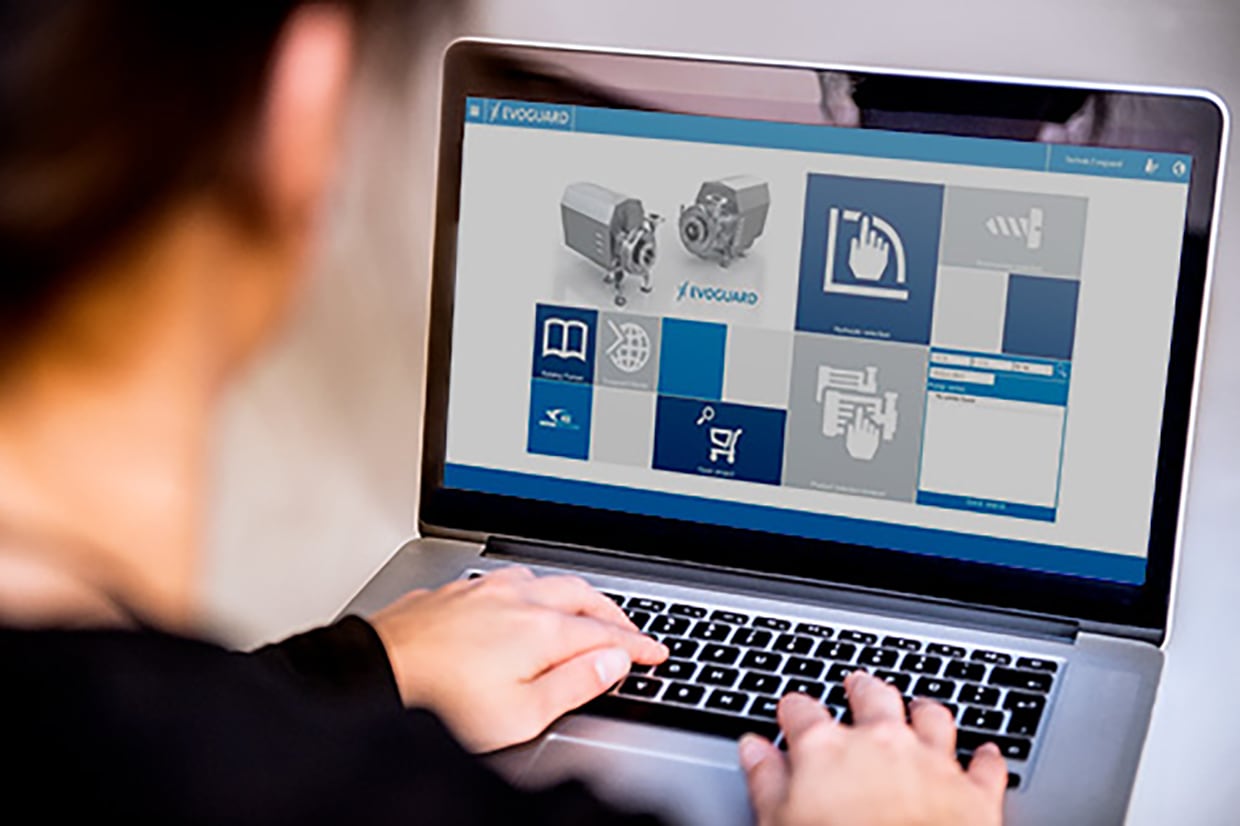

    The pump configuration tool is available on Evoguard’s website. All you need is a user account, which you can set up yourself.
