    Krones Robobox T-GS
    Robobox T-GS grouping system

      Tripod solution for the palletising technology

      The next step in evolution

      The Robobox T-GS opens up new opportunities in the Krones dry end: because the grouping system uses a tripod robot with innovative parallel kinematics. Thanks to this conversion, it has advanced several steps at once. Why? It has become more powerful, quicker, more robust and more precise all at once.

      At a glance

      • Grouping of packs in line with a specified layer pattern
      • Processing range: All commercial non-returnable packs
      • Top grouping speeds with only one module
      • Reduced space requirement
      • Short feed distances between the packer and palletiser
      • Less maintenance and service work required thanks to smooth and more harmonious movements

      T-GS = Tripod Grouping System

      00 - Article Item 13043
      Brochure Krones Robobox T-GS
      0.56 MB, .pdf

      Technical features

      RoboboxT-GS is a modular system which positions the non-returnable packs for the determined layer pattern. Positive-fit precision grippers guide the packs safely and gently to their pre-programmed position.

      • One or two-lane pack infeed (also possible without gaps)
      • Gripper head for positioning single or several packs
      • Robot with parallel kinematics
      • Gripping technology for all customary packs
      • Option: Automatic adjustment of the infeed conveyor guides

      Example for overall arrangement

      Practical modular component system
      A double-module RoboboxT-GS may be used to adjust the speed of the grouping system exactly to that of the entire line.

      A winning team
      Together with the palletising robots of the ModulpalPro series, the RoboboxT-GS forms a flexible and fast-acting team that is capable of achieving top performance in palletising.

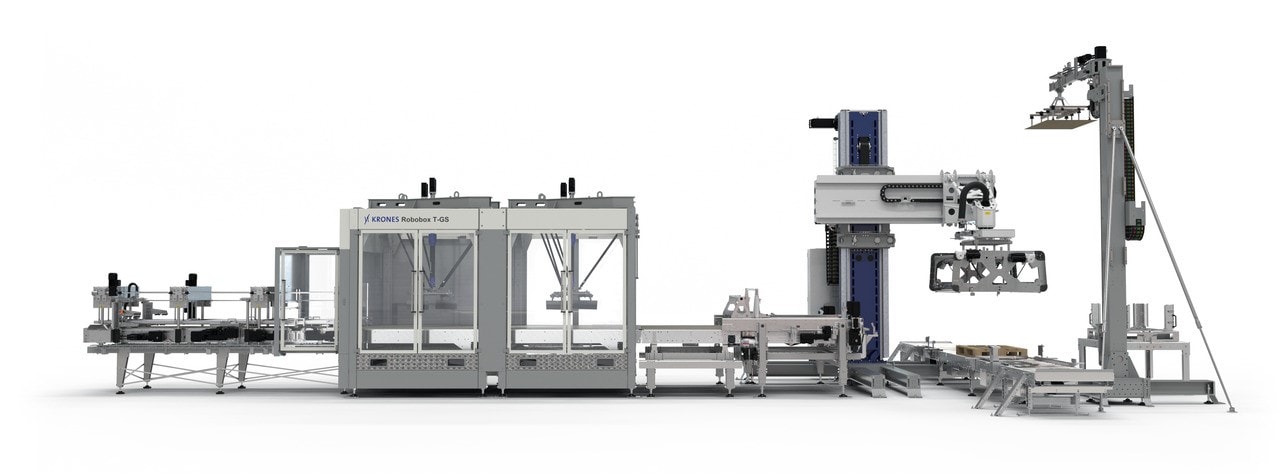

      Example for overall arrangement
      Layer pad magazine
      Robobox T-GS
      Layer pad inserter
      06 - Image with Hotspots 13205
      Layer pad magazine
      Layer pad inserter
      Robobox T-GS

      Benefits to you

      High performance on small space

      Being a high-performance tripod robot, the Robobox T-GS groups up to 500 layers per hour with only one module.

      Precise layer pattern

      Positive-fit precision grippers guide the packs safely and precisely to their determined positions.

      Gentle pack conveyance

      Due to the fact that there are no transfer plates between the flush-grid belt tables, the packs are conveyed extremely gently. And another thing: Stop-and-go is a thing of the past thanks to the continuous infeed. The packs enter the grouping station continuously with very low impact.

      Simple design

      Due to its innovative parallel kinematics, the Robobox T-GS must move up to 70 percent less own mass than an articulated-arm robot or a portal robot.

      Intelligent correction mode

      The grouping system checks the position of the incoming packs and regulates it upon deviations.

      Efficient team

      Depending on the respective task, the grouping system can be combined with additional machines from the Krones dry part. An especially effective combination: In a team with the Modulpal Pro 2A palletising robot, the Robobox T-GS achieves great performances on small space.

      Quick product change-over

      In order to keep change-overs as short as possible, the Robobox requires almost no product-specific components.

      Flexibility and efficiency

      Depending on the requirement, the infeed is made up of one or two lanes. It is also possible to position several packs simultaneously.

      Why the Robobox T-GS is enviro-classified

      • It is only used with servo drives of efficiency class IE4
      • Significant reduction in the moved masses thanks to parallel kinematics and carbon components
      • Energy recovery via the modular B&R ACOPOSmultidrive system
      • Energy measuring package and leakage detection
      • Almost no pneumatic drives and locking mechanisms required
      • Use of enclosed lifetime-lubricated bearings
      • Employment of enviro-compliant H1 lubrication grease and oil

      This product is enviro classified

      Top technology for ecologically efficient production

      Top technology for ecologically efficient production

      The Krones sustainability programme enviro: top technology for ecologically efficient production.
