Block for aseptic filling
A protected atmosphere for your product
Our aseptic range has expanded: the tried-and-tested Contipure AseptBloc is now also available in a compact version. It combines a space-saving design with Krones' well proven machine and process quality. This means that beverage products produced in lower quantities can now also be integrated into an aseptically safe process chain – from blow moulding through to filling and capping.
At a glance
- Design:
- Preform sterilisation module
- Aseptic blow moulder
- Aseptic filler and capper
- Suitable for:
- Aseptic filling of high and low-acid products
- Round, square and rectangular PET containers
- Standard and lightweight containers
- Output: 8,000 to 27,500* containers per hour, for non-carbonated beverages
- Pitch diameter from 1,080 to 1,800 mm
- Capper pitch diameter of 360 mm available for servo grippers and servo screw cappers
- Only one sterilisation medium: gaseous hydrogen peroxide (H2O2)
* Depending on the container size and product
3-A certification for the Contipure AseptBloc

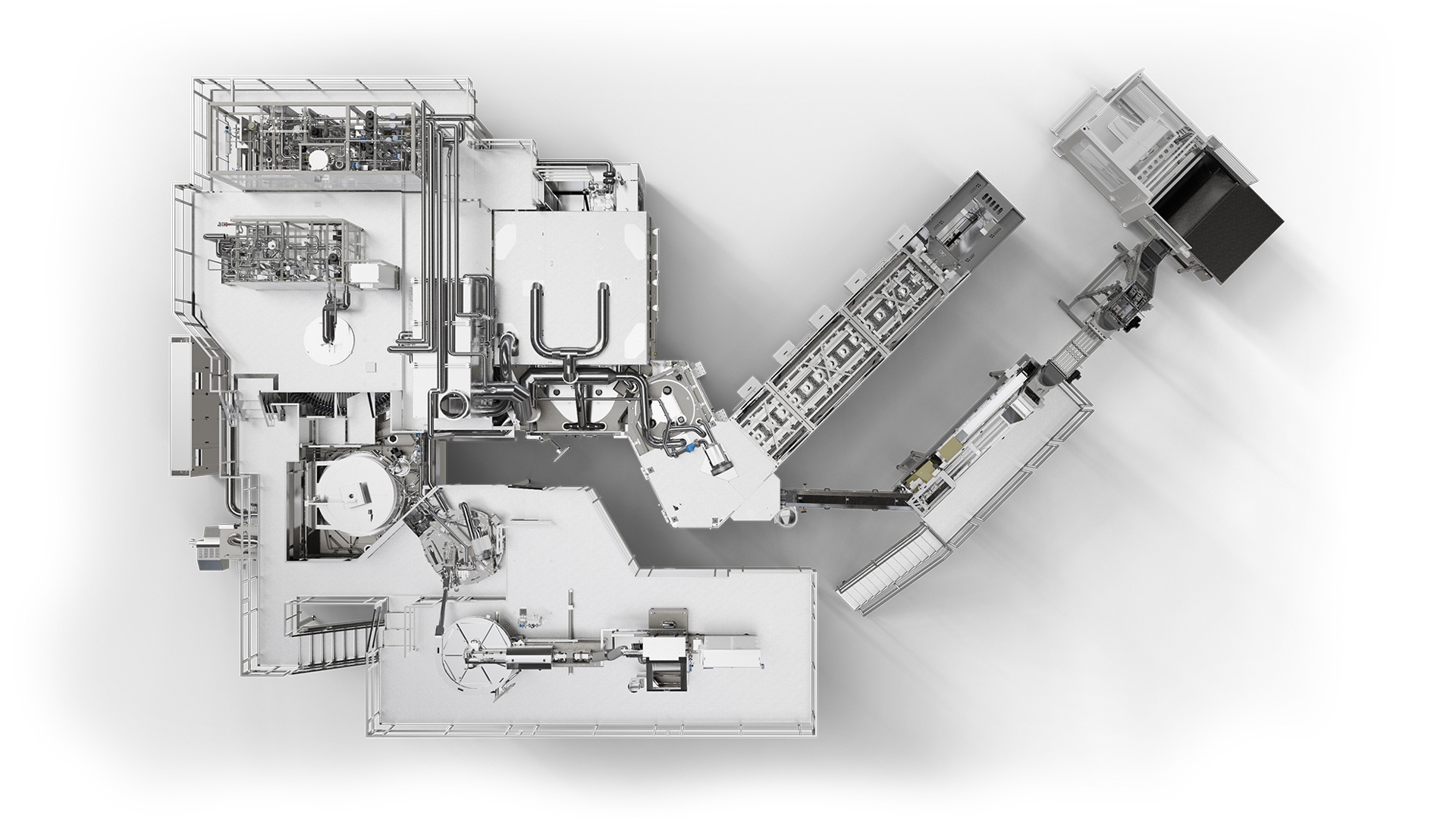

The key components at a glance
Contifeed preform feed system
- Thanks to hygienic design optimal for the Contipure AseptBloc
- Variants adjustable depending on the installation position
Prejet preform rotary rinser
Compact one-starwheel concept at ground level
Method of operation:
- Immersion of the rinser lances in the preforms
- Blowing out of the particles with pre-filtered and ionised sterile air
- At the same time as the particles are blown out: Extraction of the mix of air and dirt
Infrared oven
Servo-controlled oven of the Contiform standard series with efficient and pre-filtered preform air cooling system
Option: Tool-free quick-change of the protective plates of the oven heating mandrels
Optimised in terms of energy:
- Smaller distances between heaters and longer infrared radiators
- Use of parabolic mirrors
Contipure D preform sterilisation module
- The module is between infrared oven and aseptic blowing module.
- Via nozzles, a targeted and directed feed of gaseous hydrogen peroxide (H2O2).
- This provides an overflow and thus results in simultaneous internal and external preform sterilisation.
Aseptic blowing module
- The preforms are transferred to the aseptic blowing module after sterilisation.
- The blowing process takes place within a sterile isolator which is protected from its environment by means of a liquid seal system.
- The stretching rod never leaves the sterile zone during the entire blowing process.
- The blowing process is carried out with pre-filtered sterile air.
Central ventilation technology
Cap sorting and inspection
CapAsept D cap sterilisation module
- Cap blower using ionised air right in front of the unit
- Sterilisation by gaseous H2O2
- No back-up pressure acting on the caps – no deformation
- Clocked feed of the caps on demand: No bottle – no cap
Aseptic capper
- Every capping head has its own separate servo drive.
- A transfer tunnel separates the sterile area from the outside area.
- The proper technique for every cap – overcaps with round bottle possible!
Aseptic filler
Valve manifold
Media module
Benefits to you
High tech for lower outputs
You do not aim to break any performance records, but simply want to aseptically fill between 8,000 and 27,500 containers per hour? Then the compact version of the Contipure AseptBloc is the ideal choice: the block is specialised for smaller outputs – without compromising on machine technology and process reliability!
High availability
The entire block is in production for 168 hours non-stop. Depending on the product, it is cleaned and sterilised after 90 minutes or two and a half hours and can be used again. Intermediate cleaning after manual interventions also only takes 30 minutes.
Triple protection
The all-round treatment with gaseous H2O2 sterilises the entire preform surface at once: Inside, outside and in the neck area.
Small footprint
Only approx. 100 square metres: all the space it needs to perform blow moulding, filling and capping in an aseptically safe process chain. This is made possible mainly thanks to a sophisticated clean room concept, optimal positioning of peripheral equipment —such as media supply and valve manifolds —and piping integrated directly into the system.
Gentle preform treatment
The sterilisation of the preforms hardly leaves any residues: This is because the surface enlarges by many times and the residues of the sterilisation medium are diluted accordingly.
