    Smart process control system for the stretch blow molder

    You need to accept cookies to use this functionality.

    With Contiloop AI, Krones has developed an intelligent process control system for the Contiform stretch blow molder: The combination of AI-based software and newly developed hardware makes it possible to detect even the slightest variations in material distribution in the production of PET containers and to automatically adjust key stretch-blow-molding parameters in real time – and thus to ensure that bottle quality meets specifications.

    The challenges associated with manufacturing PET containers are varied and complex. Process windows are short, and even the daily changes in ambient temperature and humidity in the production hall require regular manual adjustments to various process parameters to ensure the required level of container quality.

    Steadily increasing production speeds present another challenge: While the maximum output per blowing station was still at 1,600 containers per hour back in 2000, today’s stations are capable of making up to 2,750 bottles per hour. So, a machine can turn out as many as 100,000 containers per hour. Of course, at such high speeds, even the slightest deviations from ideal conditions can quickly and significantly impact an entire production run.

    Image 29914

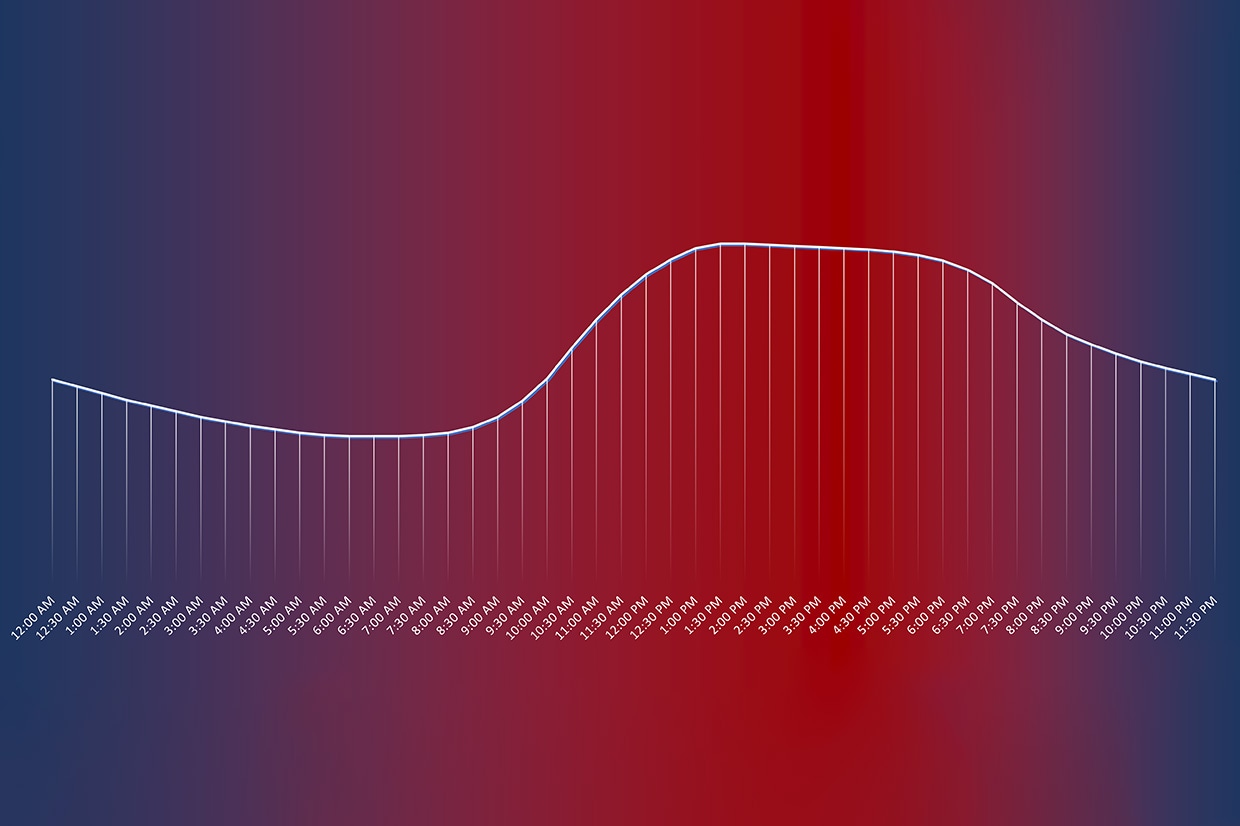

    Temperature variations in the production hall throughout the day often necessitate adjustments to process parameters on the stretch blow molder. Contiloop AI now takes care of those adjustments, fully automatically.

    Meanwhile, demands on personnel are also evolving: State-of-the-art technologies and increasing automation in all areas of filling mean that it takes fewer people to run the machines and ensure successful production. Today, one operator is responsible for multiple machines and systems – and has less time for visual quality checks and manual process control on the stretch blow molder.

    Two more important trends must also be borne in mind: First, consumers especially are calling for increased use of recycled PET material (rPET). In order to combine the advantages of PET containers with sustainability, beverage producers must gradually increase the share of rPET in bottles to as much as 100 percent. But not all rPET is created equal. Quality and composition are critical factors – and they can sometimes be rather uneven. Any inconsistencies must be offset in the blow molding process, to ensure that every container meets the specified quality criteria.  The second trend is the continued effort among beverage producers to further reduce the weight of their bottles. PET (whether recycled or virgin material) is costly, and high-quality rPET is a scarce commodity. And so it only makes sense to reduce the weight of the containers as much as possible – to save on materials in the production process and to further reduce the containers’ ecological footprint.

    Image 29915
    Using preforms made of rPET also has implications for the stretch blow molding process.

    Automatic monitoring and smart control of the stretch-blow-molding process

    In order to help beverage producers overcome all of these challenges and to provide options beyond manual operator intervention, Krones has developed Contiloop AI.

    The system, which is fully integrated into the stretch blow molder, measures the light transmission ratio at as many as 32 points on each container. During ongoing production, Contiloop AI responds to even the slightest variations in material distribution and automatically adjusts the stretch blow molding process in real time. It also takes into account additional parameters such as ambient temperature and humidity as well as preform feed and discharge temperatures. Any adjustments made are displayed on the HMI to give the operator a clear overview of the current process controls.

    06 - Image with Hotspots 29938

    ContiloopAI system with connection to the Krones IIoTplatform

    Light transmission value measuring bridge

    Measurement of the ambient temperature and air humidity

    Measurement of the preform discharge temperature

    Measurement of the preform infeed temperature

    A variety of measurement points continuously deliver detailed information about ongoing production.

    Artificial intelligence makes it possible to train and optimize the system

    Because production conditions are constantly changing, it’s not enough for Krones to have the controls revert to a specific, pre-set formula. Instead, various initial process settings are made for the system in an automated trial run and the resulting measurements are passed on to the Krones IIoT (Industrial Internet of Things) platform. There, the data flows into the Krones AI pipeline and is used to train the rule algorithm, the “intelligent agent”. When training is complete, the agent is loaded onto the machine’s Contiloop AI and is then available for use in production operations.

    How Contiloop AI works during production…

    ...and for training and optimizing the system


    “The advantages of this system are clear: On the one hand, Krones can make available AI agents that are suited to additional container types that might in future be processed on the same machine – in a way that is secure and convenient for the customer. On the other hand, existing agents are regularly checked and can be retrained as needed at any time, for instance, if there are significant changes to production conditions – so they can become even smarter,” explains Robert Aust, Head of Product Management Plastics and Bloc Technology at Krones.

    Especially worthwhile when processing rPET

    In particular, when rPET is used, the available process window is usually very small and can sometimes be more variable than when virgin PET material is used. Even at high speeds and low container weights, this narrow window must be adhered to very precisely. Contiloop AI ensures a very high level of quality in the finished containers and a very low scrap (rejection) rate.

    But the myriad advantages of Contiloop AI are not limited to material and process aspects – this ingenious technology also makes work considerably easier for operating personnel. The automated controls mean far fewer manual interventions at the machine, and offline quality assurance can be reduced to a minimum.

    Looking ahead to the future

    At Krones, we’ve long placed a strong emphasis on combining ease of operation with the highest level of quality. And so, Krones will continue to develop Contiloop AI and use cloud- and AI-based technologies to expand the system’s capabilities – to even better help our customers master the challenges of day-to-day production.
