    Second high-speed line for swing-stopper bottles

    You need to accept cookies to use this functionality.
    A line for swing-stopper bottles, let alone a high-speed one, is not quite so usual in the industry. The Kulmbacher Brauerei will soon have two of those.
    • Demand for beers brewed by the Kulmbacher Brauerei like Kapuziner wheat beer has not only been steady, it has grown exponentially. Image credits:

      Kulmbacher Brauerei

    It was only in 2017 that the Kulmbacher Brauerei commissioned a new Krones line for swing-stopper bottles achieving an output of 50,000 bottles per hour, a figure unprecedented in this category – a world record. But demand for the Mönchshof specialty beers and for Kapuziner wheat beer in the 0.5-litre swing-stopper bottle filled on this line has not only held steady, it has achieved overproportional growth. That’s why the brewery will now install a second identical line.

    Whereas capacity for swing-stopper bottles was at one million hectolitres per year with the first new line from Krones and an existing combined line handling both NRW and swing-stopper bottles, the Kulmbacher Brauerei is now planning for an annual output of 1.5 million hectolitres. It isn’t hard to realise that this is impossible without installing further bottling capacities. The brewery therefore placed an order with Krones for an identical line, likewise rated at 50,000 bottles per hour.

    So it can safely be assumed that the Kulmbacher Brauerei was fully satisfied with its first line. “We entered into negotiations bestowed with a vote of confidence,” admits Berthold Stock, a Krones sales engineer. And Stefan Simon, Head of Production & Engineering and at the same time Project Manager at the Kulmbacher Brauerei, adds: “True to the motto of ‘Never change a winning team’, it was clear to us, the brewery’s technology crew, that the new challenge in this output category could be successfully mastered only together with Krones.”

    Image 28741
    Stefan Simon, Head of Production & Engineering and at the same time Project Manager at the Kulmbacher Brauerei
    Project: High-speed line for filling swing-stopper bottles
    Customer: Kulmbacher Brauerei
    Location: Kulmbach, Germany
    Commissioning: March 2023

    Line rated at 50,000 0.5-litre swing-stopper bottles, consisting of the following machines:


    • Pressant Universal 1A bulk-glass sweep-off depalletiser
    • Two Linapac II machines: one unpacker and one packer
    • Two Modulpal Pro 2A machines: one depalletiser and one palletiser
    • Two machines for opening swing-stopper bottles, one of them with automatic rubber-seal replacement
    • Linajet crate washer
    • Single-end Lavatec E3 bottle washer
    • Linatronic empty-bottle inspector with integrated rubber-seal inspection and various other inspection systems (see below for more details)
    • VarioFlash B flash pasteuriser with buffer tank
    • Modulfill HES filler
    • Two swing-stopper closers, each rated at 30,000 bottles per hour
    • Ergomatic labeller with three cold-glue stations

    Machines distributed across two halls

    Whereas the first swing-stopper line, which in 2017 replaced an existing line, was erected step by step in five stages, things will this time be easier because the high-speed line will be accommodated in a newly built hall where it can be installed in one go.

    But this job is not entirely without its special requirements, either: Both the empties feed-in and the fulls-discharge kit will have to be erected in an existing building, which is separated from the new hall by a road. To link them up, two pallet lifts are used on each side of the road, which raise the pallets up to a height of about six metres, so they can cross the road in an enclosed bridge. An option must also be provided for feeding in empties and discharging fulls directly at the new bottling hall in order to ensure autonomous operation. This necessitates a correspondingly larger pallet conveyor system.

    The VarioFlash pasteuriser is likewise accommodated in an existing building. A pipeline, which is more than 200 metres long, supplies the filler from there.

    Extensive inspection options

    Image 28742

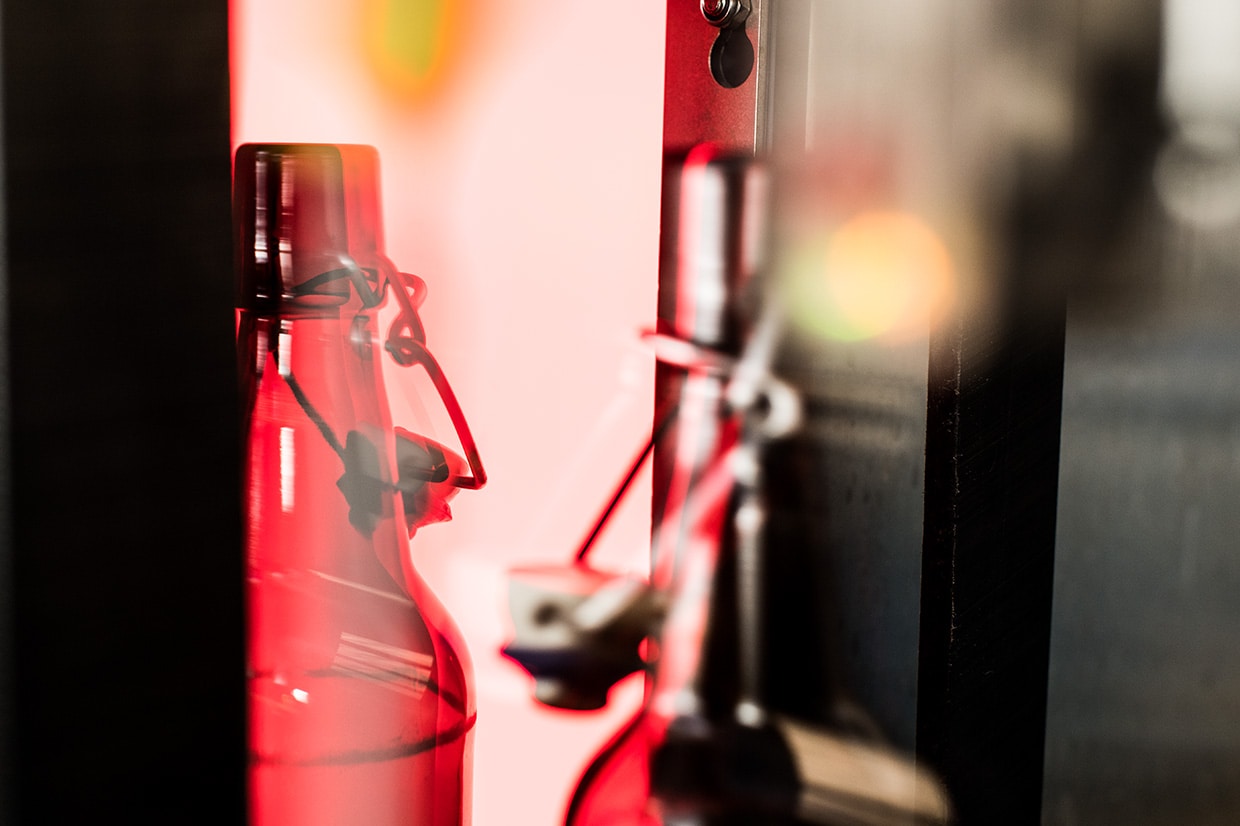

    Like the first line, the new line also features a comprehensive array of inspection units.
    • Empties inspector for detecting closed, open, and foreign bottles in the crate, upstream of a selective unpacker
    • Sekamat unit for fine-sorting foreign bottles and closed bottles downstream of the selective unpacker
    • Latest-generation Linatronic inspector using various cameras: infrared and high-frequency detection units, and residual-caustic detection unit upstream of the filler
    • Rubber-seal inspection in the Linatronic
    • Fill level inspection unit using gamma-rays at the filler discharge
    • Bottle-burst detector with additional breakage simulation
    • Inspection unit for checking swing-stopper positioning after closing
    • Fill level inspection unit using gamma-rays, plus foam detector, downstream of the ultrasonic bath
    • Inspection unit checking body label, tamper-evident seal and back label with BB laser code and detecting leaking bottles and out-of-shape rubber seals in the labeller
    • Full-crate inspector

    In contrast to the machine installed in the first line, the Checkmat FEM-G inspector in the second swing-stopper line upstream of the labeller will be equipped with black-and-white cameras and a larger CPU control system in order to detect foam leaking at the rubber seal.

    The target: to set a new speed record

    Closed empties are sorted by selective unpacking, just as in the first line. Since the gripper cups can be activated individually, the unpacker deposits closed and foreign bottles on one conveyor and open bottles on a separate conveyor. The closed swing-stopper bottles are then opened in two specially designed machines. What is new here is that any crates not amenable to automatic unpacking can be rejected beforehand.

    Image 28743

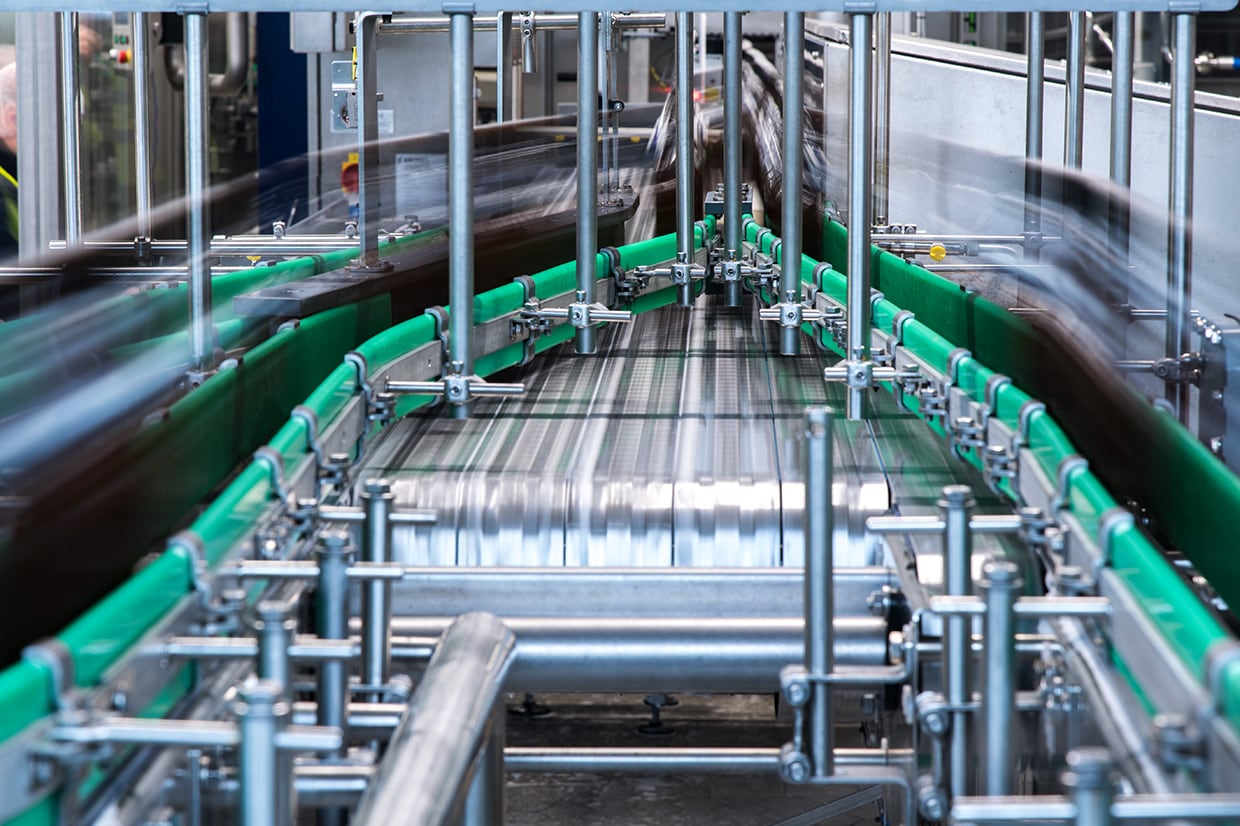

    The project team’s goal (not officially specified) is to achieve an overall output of as many as 52,000 bottles per hour – thus outperforming the record set in 2017.

    The Lavatec E3 bottle washer will this time be somewhat wider, in order to provide more performance reserves. It will be dimensioned for a throughput of 62,000 bottles per hour because the declared goal (even though it was not contractually specified) of everyone involved is to upsize total line output to 52,000 bottles an hour and thus outperform the record of 50,000 swing-stopper bottles per hour set in 2017.

    Media supply concept drawn up by Krones’ factory planning team

    Besides delivering the line, Krones – or to be more precise the group’s factory planning team – will draw up a concept specifying how the future line’s supplies of power, air, water and other media can be linked up to the existing supply system. A requisite invitation to tender has already been drafted.
